Jeanneau Sun Odyssey 349 – Sailing yacht

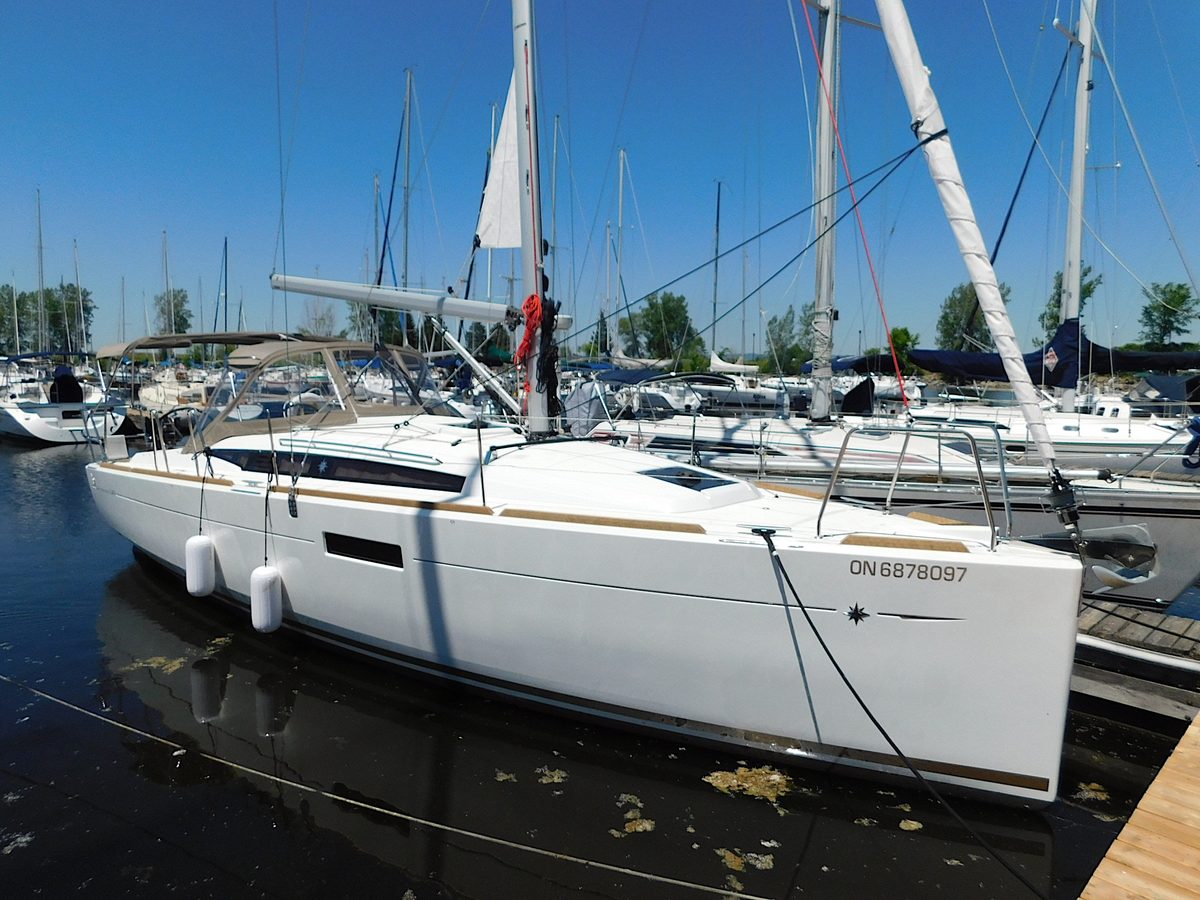

Photo: Ahunt, CC0, via Wikimedia Commons

Jeanneau · Sailing yacht

Jeanneau Sun Odyssey 349

The Sun Odyssey 349 is a 10.34 m family cruiser by Marc Lombard and Jeanneau Design that made its world debut at the Paris boat show in December 2013 as a 2014 model and stayed in the range until the Sun Odyssey 350 took over, shown at boot Düsseldorf in January 2024; Jeanneau’s last equipment list is dated June 2022 and the last Sun Odyssey brochure with the 349 is the 2023 edition. It has a hard chine, twin rudders and twin wheels, two or three cabins with one head, and three keels: a 1.98 m deep fin, a 1.49 m winged shoal keel and a swing keel drawing 1.26 to 2.54 m. Every list from 2013 to 2022 gives the same engine, a 21 hp Yanmar 3YM20 on a 25 mm propeller shaft rather than a saildrive; only the alternator grew, from 80 A in the first list to 125 A by 2016. Jeanneau America put sales at nearly 1000 boats in December 2023, YACHT a month later at about 1400. There is no owner’s manual to download: Jeanneau’s help centre sends a digital copy on request, and the equipment lists of November 2016, November 2019, January 2021 and June 2022 are still online.

Manuals & documents

The links go to Jeanneau’s own documents — some as archived copies of pages the maker has since taken down. We host no manuals or drawings.

Equipment & its manuals

Standard equipment as the builder’s documents list it. Boats were ordered with options and refitted since — check what is actually aboard.

ItemModelManual / pageNote
EngineYanmar 3YM201,2,3,4Standard in every list from November 2013 (model year 2014) to June 2022: 21 hp (15.3 kW) with shaft drive; no other engine is listedYanmar 3YM30 Parts & service pageThe 2013 list adds ‘with heat exchanger’ (fresh-water cooling). Jeanneau writes ‘Shaft drive’ from the 2019 list on; the 2013 and 2016 lists describe a 25 mm stainless propeller shaft with a maintenance-free stuffing box. Access behind the companionway steps and from the aft cabin; throttle and engine panel to starboard; fuel/water separator, 40 mm foam insulation with fire-retardant film, built-in muffler.
Alternators80 A · 125 A1,2,480 A in the November 2013 list; 125 A from the November 2016 list on (printed ‘125 Ah’ in 2021 and 2022), with charge distributor and isolator; make not named—
Propeller—1,3,4Fixed three-blade propeller, standard in every list; make not named—On a 25 mm stainless shaft; Jeanneau calls the shaft seal a ‘maintenance-free stuffing box’ without naming its make.
PropellerFlex-o-Fold1,3,4Option in every list from 2013 to 2022: three-blade folding propellerFlexofold folding propellers Parts & service pageJeanneau spells the make ‘Flex-o-Fold’.
WinchesHarken 35.2 ST × 21,2,3,4Standard in every list: two self-tailing genoa winches within reach of the helms, with one Harken winch handleHarken Radial & Classic winches Parts & service pageThe Performance pack adds two more 35.2 ST on the coachroof with clutches and a second handle. Spinlock jammers are standard; the mainsheet runs from padeyes forward of the companionway to the cockpit winches.
Windlass1000 W1,3,5,4Option in every list, standard with the Limited Edition pack (2021 and 2022 lists): electric windlass for rope and 10 mm chain; make not named—The 2013 list describes it as a vertical windlass in the anchor locker with hand-held remote and manual handle. Standard is a single stainless bow roller.
AnchorDelta 16 kg1,3,4Option in every list: anchoring kit with a 16 kg Delta anchor, 28 m of 10 mm chain and 40 m of 18 mm line—
Mast & riggingSeldén1,2,4The November 2013 list names a Seldén aluminium mast with two spreaders, deck-stepped; the later lists describe the same rig without the make. Discontinuous 1×19 stainless standing rigging—Options in every list: in-mast furling mast with two spreaders and a double backstay adjustable with a tackle. Jeanneau writes ‘Selden’.
Furler—1,3,4Standard genoa furler with double-slot foil on the stemhead fitting, furling line led aft to the port helm winch; make not named—The optional self-tacking jib needs the ball-bearing track on the coachroof, also an option.
Sails30.7 m² + 24.6 m²1,2,3,5,4Standard: horizontally-cut Dacron mainsail (30.7 m² in the 2013 to 2019 lists, 30.60 m² in 2021 and 2022) and a 110 % furling genoa of 24.6 m²; sailmaker not named—Options: square-top Performance mainsail (34.1 m², 33.90 m² from 2021), Performance genoa, self-tacking jib (17.9 m²), in-mast furling mainsail (25.7 m², 23.60 m² from 2021) and a Code 0 in mylar/aramid on a continuous-line furler (38 m² in 2013, 40.8 m² in 2016 and 2019, 43.70 m² from 2021). The Performance sails and the self-tacking jib are mylar/taffeta laminate in 2013 and 2016, Flex Lite Skin in 2019 and 2021 and DCX grey in 2022.
Steering—1,3,4Twin leather-covered wheels with a compass at each helm and twin GRP rudders in every list; the later lists add balanced rudders on stainless shafts and, from 2019, textile steering lines; make not named—Option: black composite wheels.
BatteriesExide Dual Marine1,2,3,4Named from the November 2016 list on (the 2013 list gives no make): one 80 Ah domestic and one 80 Ah engine battery, 12 V; the Première trim level adds a second 80 Ah domestic battery—Option from the 2019 list: lithium domestic bank. The optional bow thruster comes with two extra batteries. Positive battery switches for engine and domestic bank plus a main cut-off switch.
Charger40 A1,2,3,4Première trim level in every list: multi-phase battery charger with 220 V shore power and sockets at the chart table, in the galley and the cabins (printed ‘40 Ah’ in 2021 and 2022); make not named—
Water heater25 l1,2,4Première trim level in every list: water heater on the engine’s heat exchanger and on 220 V; make not named—The Préférence trim level adds a hot and cold cockpit shower.
Water pump19 l/min1,2,3,4Standard ‘heavy-duty’ pressure pump with accumulator tank in every list (19 l/min, 5 US gal/min, given from 2019); make not named—Option from the 2016 list: sea-water foot pump in the galley. The 2013 list also has a digital water level display.
Bilge pump—1,2,4Manual bilge pump in the cockpit in every list; an electric bilge pump with float switch is added from the November 2016 list; makes not named—
Toilet—1,2,4Large manual marine toilet in the single head, standard; make not named—80 l holding tank in the head with gravity drain and deck pump-out fitting. With the Première trim level, version A gets a separate shower with sump pump and perspex door.
Fridge100 l1,3,4Standard top-loading fridge with 12 V compressor in every list, with a freezer compartment named from the 2016 list; make not named—The 2013 list puts the compressor under the stove and an evaporator plate in the box.
Stove—1,2,5,4Gimballed two-burner gas stove with rail, standard; option: ‘Luxe’ two-burner cooker with oven and grill; make not named—Gas locker in the cockpit; gas detector standard from the 2016 list. A 220 V microwave was optional in the lists of 2013 to 2021.
HeaterWebasto · 5500 BTU1,3,4Option in every list: one Webasto diesel forced-air heater in the stern with vents in the aft cabin, saloon and head; Jeanneau gives the output but not the model—
Air conditioning16000 BTU2,3,5,4Option in the lists of 2016, 2019 and 2021, version A only: 220 V unit under the saloon seating with vents in the saloon and cabins; not in the 2013 and 2022 lists; make not named—
Audio systemFusion RA70N1,2,3,4Préférence trim level in the 2019 to 2022 lists, with saloon and cockpit speakers; before that a Fusion RA205 (2016 list) and a Simrad Bluetooth audio station (2013 list, printed ‘Sinochub’)Fusion MS-RA70/MS-RA70N owner’s manual
Solar panels—1,2,4Option in every list: solar panel on the coachroof with charging relay; 45 W in the 2013 list, output not given later; make not named—
Bow thruster—2,3,4Option from the November 2016 list on: tunnel thruster with two extra batteries; make and power not named—
Swim platform—1,5,4Option in every list: large fold-down swim platform with telescopic ladder, standard with the Limited Edition pack (2021 and 2022); otherwise a folding stainless ladder on the transom step—
LightsLED1,2,3Masthead anchor light and tricolour, steaming light and bicolour on the mast: LED with the Première trim level in the 2013 and 2016 lists, LED as standard from the 2019 list—
Canopy & T-topSunbrella1,3,4Options in every list: sprayhood with vinyl windscreen and a folding bimini on stainless bows with storage cover, in Taupe (Taupe or Graphite from the 2019 list)—

Specifications

Length overall10.34 m (33’11″); 10.69 m (35’0″) with the bowsprit, given from the November 2016 list on1,2,4
Hull length9.97 m (32’8″)1,4
Waterline length9.40 m (30’10″)1,4
Beam3.44 m (11’3″)1,4
DraftDeep keel 1.98 m (6’5″) · shoal keel 1.49 m (4’10″) · swing keel 1.26–2.54 m (4’1″–8’4″), the latter in the lists from November 2016 on; the November 2013 list has only the deep and shoal keels1,2,4
KeelCast-iron fin with an elongated bulb and epoxy barrier coat (deep and shoal; Jeanneau calls it L-shaped); the shoal keel carries wings; the swing keel combines ballast and lateral resistance in one moving part, which YACHT’s March 2014 test calls hydraulic1,4,6,7
BallastKeel weight 1580 kg (3483 lb) deep, 1860 kg (4101 lb) shoal, 1532 kg (3377 lb) swing keel1,2,4
Displacement5340 kg (11773 lb) light, with the deep keel, in every list from 2016 and in the brochures; the November 2013 list and the April 2014 model page give 5350 kg2,4,8,1,9
Sail areaStandard 55.3 m² (595 sq ft): mainsail 30.7 m² + 110 % genoa 24.6 m² (2021 and 2022 lists: mainsail 30.60 m²; 2023 brochure: 55.2 m² in total) · Performance sails 58.7 m² (58.5 m² in the 2023 brochure), with a square-top main of 34.1 m² (33.90 m² from 2021) · self-tacking jib 17.9 m² · in-mast furling main 25.7 m² (23.60 m² from 2021)1,3,4,6,8
Gennaker / Code 0Code 0 on a continuous-line furler: 38 m² (2013 list), 40.8 m² (2016 and 2019), 43.70 m² (2021 and 2022) · asymmetric spinnaker 95 m² (2013 list, sail not supplied by Jeanneau)1,2,3,5,4
Rig dimensions (I, J, P, E)I 13.28 m, J 3.77 m, P 12.40 m, E 4.15 m (sail plan in the lists from 2013 to 2022)1,4
Air draft15.42 m from the waterline to the top of the mast (2013 list: ‘air clearance’); the same height on the sail plans up to June 20221,4
Engine21 hp (15.3 kW), Yanmar 3YM20, the only engine in every list from 2013 to 20221,2,3,4,9
DriveShaft drive: 25 mm stainless shaft with a maintenance-free stuffing box in every list; Jeanneau writes ‘Shaft drive’ from 2019; no list mentions a saildrive1,2,3,4
Fuel tank130 l (34 US gal), rotomoulded, under the aft berth, with deck filler1,4
Water tank206 l (54 US gal), rotomoulded, under the forward berth, with deck filler; 25 l water heater with the Première trim level1,4
Holding tank80 l (21 US gal) in the head, with gravity drain and deck pump-out fitting1,4
Cabins2 or 3, always one head: version A with one aft cabin, a large aft head with shower compartment and a sail locker reached from the shower and the cockpit locker; version B with two aft cabins1,2,4
Berths4 / 6 (+2) · forward 2.03 × 1.70/0.36 m; aft cabin of version A 2.00 × 1.60/1.38 m (2016 to 2022 lists; the 2013 list prints 2.00 × 1.40/1.18 m), each aft cabin of version B 2.00 × 1.40/1.18 m; options: single berth in the sail locker (A) and a saloon stool that turns the port settee into a single berth6,1,2,4
HeadroomForward cabin 1.92 m, aft cabins 1.91 m, galley 1.90 m, companionway 1.88 m, saloon 1.87 m1,4
CE categoryA6 / B8 / C10 / D12 (category and persons) from the October 2018 brochure and the November 2019 list; the November 2016 list and the July 2017 brochure give A6 / B8, the November 2013 list A6 / B8 ‘in progress’3,6,2,10,1
DesignerMarc Lombard (Marc Lombard Yacht Design Group) with Jeanneau Design4,11,12
BuilderJeanneau (SPBI), Les Herbiers, France; Jeanneau’s 2024 stock offer names Le Poiré, France, as the yard the boats leave from4,13
HullHand-laid solid GRP hull with ISO gelcoat and barrier coat and a GRP inner grid; injection-moulded deck (Prisma Process) with a discontinuous balsa core1,4
VersionsLayouts A (2 cabins) and B (3 cabins); deep, shoal or swing keel · trim levels Première (midship cleats, 25 l water heater, 40 A charger and 220 V shore power, extra 80 Ah battery, rigid vang, hatch blinds and screens, shower fittings in version A; USB sockets in the 2022 list) and Préférence (all of Première plus hot and cold cockpit shower, audio system with saloon and cockpit speakers and a cockpit table with storage)1,3,4
VersionsPerformance pack: two extra coachroof winches with clutches and a second handle, genoa lead rings adjustable from the cockpit, Dyneema main and genoa halyards, spinnaker fittings, 15-inch Windex, cockpit line bags · Limited Edition pack (2021 and 2022 lists; presented by Jeanneau in February 2021): Performance pack plus swim platform with telescopic ladder, 1000 W electric windlass, grey hull, black lazy bag and Limited Edition stickers2,5,4,14
Years builtWorld debut at the Paris boat show in December 2013 (christened on 6 December), as a 2014 model; in Jeanneau’s range up to the 2023 Sun Odyssey brochure, with the last equipment list dated June 2022; stock boats were still on offer until 31 May 202412,1,8,4,13
Hulls builtMore than 100 built and sold by December 2014 (Cruising World, quoted by Jeanneau); ‘nearly 1000 sold’ in Jeanneau America’s press release of 18 December 2023, while YACHT reported about 1400 built and sold in January 2024; Jeanneau has published no final total15,16,17
SuccessorSun Odyssey 350, which Jeanneau calls the 349’s successor, unveiled at boot Düsseldorf in January 202418,19,16
AwardsImport Boat of the Year and Best Pocket Cruiser 2015 (Cruising World and Sailing World, USA); Boat of the Year 2015, best sailing boat over 7.5 m (Zagle, Poland); Best Worldwide Production Sailing Yacht up to 15 m (Asia Boating Awards 2015)15,20,21

Good to know

  • Jeanneau has no owner’s manual for the 349 to download. Its help centre says a digital copy exists for almost every Jeanneau and sends it on request through the help button on help.jeanneau.com; brochures and equipment lists that are not online, such as the July 2014 list once linked from the old website, can be asked for there or from customer service at info@jeanneau.fr, as long as Jeanneau still has them in its archive.22,23,24
  • Spare parts and part numbers come only through Jeanneau dealers, who ask for the boat’s HIN or CIN, so have it ready. For the engine, Jeanneau will look up the archived technical data on request; the Yanmar 3YM20 itself is serviced with Yanmar parts.25,26,4
  • Unlike many boats of its size, the 349 has a shaft drive, not a saildrive: every list from 2013 to 2022 gives a 25 mm stainless shaft with what Jeanneau calls a maintenance-free stuffing box, but no make for the seal or the propeller. Check the seal type and shaft size on the boat before ordering, and note that the first boats had an 80 A alternator, later ones 125 A.1,2,3,4
  • Three keels were built, with draughts that differ by more than a metre: the 1.98 m deep fin (1580 kg), the heavier 1.49 m winged shoal keel (1860 kg) and the swing keel at 1.26 to 2.54 m (1532 kg), which YACHT tested with hydraulic operation in March 2014 and which appears in the lists from 2016. Jeanneau’s brochures say a swing-keel boat left to dry out unattended should stand on beaching legs, and that the owner must judge sea state, wind and seabed before taking the ground.1,2,4,7,10,6
  • Jeanneau names no autopilot, chartplotter or instruments for the 349: every list only provides a space for instruments within reach of the helms. What is fitted differs from boat to boat, so note the units and their generation before you buy spares or a replacement.1,3,4
  • Equipment depends on trim level and pack as much as on the year: Première brings the charger, shore power, water heater and second domestic battery, Préférence adds the audio system and cockpit shower, and the Limited Edition of 2021 and 2022 is easy to spot by its grey hull, stickers and black lazy bag, with the Performance pack, swim platform and windlass included. Ask which trim and packs a boat has before trusting a listing.3,5,4,14
