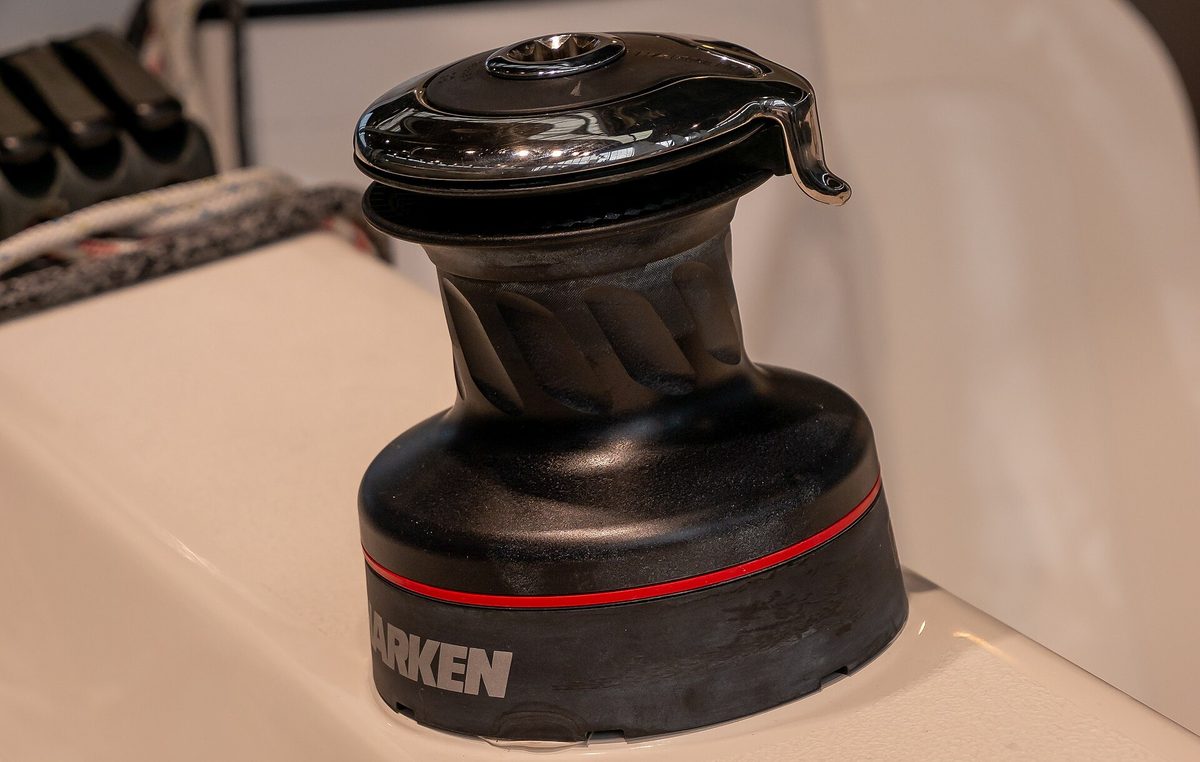

Harken Radial & Classic winches

Harken’s Radial winches are the sheet and halyard winches on a great many cruising and racing yachts built since 2009; the drum has diagonal ribs instead of an abrasive surface and runs on roller bearings. The size number is the power-ratio class, ‘.2’ means two-speed and ‘.3’ three-speed, ST self-tailing; the last letter gives the drum finish (A aluminium, C chrome, CCC all-chrome, BBB bronze). Performa winches use the same mechanism with a sandblasted drum for thin high-strength line, and the Classic range (B6–B980, 1992–2016) is the earlier line. Every Radial from 15 to 70.2 takes the same 8 mm pawl and spring, so one service kit, BK4512, covers almost the whole cruising range and the Classic winches as well.

Manuals & documents

The links go straight to Harken. We host no manuals or drawings — the manufacturer’s copy is the current one.

Wear parts & part numbers

PartOEM numberAlso fitsNote
Service kitBK45121,2—Classic/Radial kit: 10 pawls Ø8 and 20 springs. Fits two-speed Radial 15–70.2, Rewind and UniPower electric winches, Performa 20, Classic B6–B980 and the 1000.3. Harken’s standard cruising kit.
Standard pawlS0000800033,4,5,6,7—Pawl Ø8 of all two-speed Radial 15–70.2 in every drum finish: 4 per winch on 15, 20, 35.2 and 40.2, 6 on 46.2, 50.2, 60.2 and 70.2. Sold in kit BK4512.
Pawl springS0003800013,5,8—Spring Ø8, one per pawl on all two-speed Radial 15–70.2; 20 of them in kit BK4512.
Service kitBK45169—8 mm racing kit: 10 pawls in 17-4 PH stainless steel and 20 springs. Fits three-speed Radial 60.3 and 70.3, Performa 35–70 and Quattro, custom/racing 50–650 and Air winches.
Service kitBK451510—10 mm racing kit: 10 pawls in 17-4 PH stainless steel and 20 springs. Fits Radial 80, Performa 80 and custom/racing 880–1150.
Winch greaseBK451311,2—Harken High Performance Winch Grease, white; for gears, pins, teeth and bearings of all Harken winches.
Pawl oilBK452112,2—Harken Pawl Oil, for pawls and springs only.
Maintenance packBK451413—Winch service case: 10 pawls, 20 springs, pawl oil, winch grease, handle repair kit and stickers in a carrying case. Same fitment as BK4512.
Winch handleBK45172—Service kit for Harken Lock-In winch handles (not a handle).
Roller bearingA74136000 · A74133700 · A7413510014,5,6,8—Drum roller bearings, 2 per winch: A74136000 (Ø56×Ø68×24) for 35.2 and 40.2; A74133700 (Ø75×Ø87×26) for 46.2; A74135100 (Ø85×Ø97×26) for 50.2, which also has two small bearings A72821800.
Roller bearingA74145000 · A7414750015,7—Drum roller bearings, 3 per winch: A74145000 (Ø95×Ø107×26) for 60.2; A74147500 (Ø102×Ø114×26) for 70.2. Both sizes also carry small bearings A72821800 (2) and A74162300 (2).
Fastening kitBK451916—Drum screw kit for Classic B16–B46: 8 screws 8×20 mm with 8 plastic washers.
Fastening kitBK451817—Drum screw kit for Classic B48–B980: 8 screws 8×20 mm with 8 plastic washers.

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

TaskInterval
Fresh-water washFrequently, and after every use18
Full serviceComplete overhaul (strip, clean, inspect, lubricate) at least every 12 months18,14
Season checkVisual inspection at the beginning and end of every sailing or racing season18
Strip, clean & greaseHarken’s shop advice: at least once before the season; twice a season if the boat lives in salt water; before every regatta if you race hard2
Pawls & springsCheck pawls, springs, bearings, gears and spindles for wear and corrosion at every service; replace anything worn or damaged, original parts only2,14

From Harken’s Radial winch users manual and the size-specific installation and maintenance manuals. The salt-water and regatta advice is Harken’s shop guidance, not a figure from the manuals.

Specifications

SizesRadial ST: 15 and 20 single-speed; 35, 40, 46, 50, 60 and 70 two-speed (.2); 60 and 70 three-speed (.3); 80 · Performa 20–80 (ST, plain-top, Quattro) · Classic B6–B9801,9,10,19
Pawls by sizeTwo-speed Radial 15–70: pawl Ø8 S000080003 with spring S000380001 — 4 pawls on 15, 20, 35 and 40, 6 on 46, 50, 60 and 70. Three-speed 60/70 and Performa 35–70: 8 mm racing pawls (kit BK4516); size 80: 10 mm pawls (BK4515)3,4,5,6,8,15,7,9,10
Power ratio1st / 2nd gear — 15: 16.9:1 · 20: 19.2:1 · 35: 13.5 / 35.9:1 · 40: 13.5 / 39.9:1 · 46: 11.7 / 46.5:1 · 50: 10.9 / 50.4:1 · 60: 20.3 / 61.0:1 · 70: 22.2 / 72.0:13,20,14,21,22,23,24,25
Gear ratio1st / 2nd gear — 15: 2.43:1 · 20: 2.76:1 · 35: 2.13 / 5.65:1 · 40: 2.13 / 6.28:1 · 46: 2.30 / 9.17:1 · 50: 2.40 / 10.90:1 · 60: 4.80 / 14.40:1 · 70: 5.70 / 18.50:13,20,14,21,22,23,24,25
Line size40: 8–12 mm · 46 and 50: 8–14 mm · 60: 8–16 mm · 70: 10–18 mm21,22,23,24,25
DrumDrum diameter — 15 and 20: 73.5 mm · 35: 80.5 mm · 40: 80 mm · 46: 100 mm · 50: 110 mm · 60: 120 mm · 70: 130 mm3,20,14,21,22,23,24,25
Mounting15, 20, 35 and 40: 5 × M6 (40: on a 123 mm circle) · 46 and 50: 5 × M8 on 150 mm · 60: 6 × M8 on 204 mm · 70: 6 × M8 on 205 mm — socket-head screws, bolts not supplied3,20,14,21,22,23,24,25
WeightAluminium drum (STA) — 15: 2.1 kg · 20: 2.4 kg · 35: 3.6 kg · 40: 3.8 kg · 46: 5.2 kg · 50: 6.0 kg · 60: 10.2 kg · 70: 11.3 kg; chrome and bronze drums weigh more3,20,14,21,22,23,24,25
LubricationHarken winch grease BK4513 brushed on thinly: gears, gear pins, teeth, roller bearings and all moving parts; anti-seize where the exploded view marks ‘A’. Harken pawl oil BK4521 on pawls and springs only — never grease on the pawls14,11,12
CleaningRinse with fresh water often and after every use. Stripped parts: residue-free degreaser on metal, fresh water only on plastic. No solvents, polish or abrasives on anodised, chromed or plastic parts and stickers; bronze brackets (BBB) and chrome drums (CCC) only with 1 part vinegar to 2 parts water; keep teak cleaner and other caustic products off the winch18,14
Tightening torquesTwo-speed 35 ST (manual): central drum screw 2 Nm (18 in-lb), self-tailing jaw screws 4 Nm (35 in-lb); other sizes: the torques are printed in the disassembly steps of the size-specific manual14
Years builtRadial since 2009 (manuals and parts lists are titled ‘2009 to present’); Classic 1992–2016 (manual chart: 1992–1998, 1999–2003, 2004–2009, 2009–2016)19,26

Good to know

  • Oil the pawls and springs, never grease them: Harken’s manuals say grease on the pawls can stop them engaging. Grease goes on as a thin brushed film on gears, gear pins, teeth and bearings only.14
  • Pick the kit by winch, not by brand: two-speed Radial 15–70.2, Performa 20 and all Classic winches take BK4512 (8 mm pawls); three-speed 60.3/70.3 and Performa 35–70 take the 8 mm racing kit BK4516; size 80 takes the 10 mm kit BK4515. Count your pawls — 4 on 15–40.2, 6 on 46.2–70.2 — so one kit lasts two services.2,5,6
  • A Radial strips from the top with one medium flat-bladed screwdriver: undo the central screw, lift off the handle socket and cover, then the self-tailing arm and drum, then the gears and pawl carriers. To take a pawl out, press its spring against the pawl with a thin blade. Refit to the torques in the manual.14
  • Once stripped: degrease the metal parts with a residue-free cleaner, rinse plastic parts in fresh water, dry with lint-free cloths. Look for wear on gear and ring-gear teeth, breaks in the bearing cages, corrosion on pins and pawls — and replace with original parts only; Harken says non-original parts void the warranty.14
  • Hose the winches with fresh water after every sail and keep the drainage holes in the base clear so water cannot collect inside. Keep teak cleaner and any caustic cleaner off them; chrome drums and bronze brackets are cleaned with one part vinegar to two parts water, nothing abrasive.18
  • Parts lists are per drum finish (STA, STC, STCW) and for the 2009-onward design; for an older Classic winch, pick the manual for its size and production era from Harken’s manual chart. When ordering, quote the serial number from the plate on the drum support.19,14

Videos & how-tos

Links to YouTube, nothing embedded. The maker’s own channel comes first; the rest are channels we found clear and correct for this model.

Fitted in

Boats whose builder lists it as standard or optional equipment:

  • Fountaine Pajot Lavezzi 40 — Harken 40 STC × 2 · 44 STC × 2 (Harken in the French inventory of July 2004 and in the September 2005 inventory, same sizes and positions; the 2006 and 2008 inventories give ‘40 STC’ and ‘44 STC’ without a maker)
  • Lagoon 440 — 48.2 / 46.2 STCE · 53.2 STC × 3 · 32.2 STC (Spec sheet 09/2005: electric 48.2 STCE; sheets 09/2008 and 11/2009: electric 46.2 STCE; in all three, three manual 53.2 STC and one 32.2 STC)
  • Seawind 1160 — Harken 46ST × 2 + 40ST × 2 (2005: 2 × Harken 46ST; spec books 2007 and 2010: 2 × Harken 46ST and 2 × Harken 40ST, two-speed self-tailing (2007 also lists two Harken 40 for the screecher sheets); Deluxe pages 2019 and 2024: 2 × 46ST + 2 × 40ST without naming the make)
  • Beneteau First 40.7 — Harken 44.2 STA × 4 · 48.2 STA × 2 (Beneteau USA from the September 2005 sheet: two 44.2 STA on the coachroof and two 48.2 STA for the genoa sheets · European list of March 2008: the same plus two 44.2 STA spinnaker winches; 53.2 STA genoa winches as an option)
  • Beneteau Oceanis 40.1 — Harken H40.2 STA × 2 (All boats: two self-tailing coachroof winches, in every list from 2020 to 2025)
  • Beneteau Oceanis 40.1 — Harken H46.2 STA × 2 (Genoa-sheet winches with the Downwind, Upwind and Downwind + Upwind rigging packs and with the First Line ALU pack)
  • Beneteau Oceanis 45 — Harken 50.2 STC × 2 · 40.2 STC × 2 (2016 and 2018 equipment lists (Europe and US); Beneteau writes H50.2 STC and H40.2 STC)
  • Beneteau Oceanis 46.1 — Harken 40.2 STA × 2 (Standard, 2018 and 2024 lists: one self-tailing winch at each helm station; Beneteau writes H40.2 STA, and the brochure names Harken)
  • Beneteau Oceanis 46.1 — Harken Performa 46.2 STPEH · 46.2 STP · 50.2 STP × 2 (First Line version (Performance pack), 2018 and 2024 lists)
  • Contessa 32 — Harken 46.2 STA × 2 · 35.2 STA × 2 · 20.2 STA × 2 (Yard specifications 2015 and 2023: two-speed 46.2 STA genoa winches, 35.2 STA self-tailing halyard winches and 20.2 STA spinnaker winches on the coaming, plus two single-speed Harken winches on the mast for reefing and the main halyard)
  • Dehler 38 — Harken (first boats) (Tests of the first boats in 2013 report Harken: six Harken winches (Barcos a Vela 07/2013), Harken as the winch maker (Yachtrevue 06/2013), sizes 40 and 46 (Segling 5/2013, Segeln 12/2013))
  • Dufour 40 — Harken 40.2 ST × 2, 48 ST × 2 (US list of January 2003: Harken 40.2 ST halyard winches on the coachroof and Harken 48 ST genoa-sheet winches on the coamings by the helm; the European lists of 2004–2005 give the same sizes without the make)
  • Grand Soleil 43 — Harken Radial 50.2 STA × 2, 46.2 STA × 2, 40.2 STA × 2 (43 Maletto, specification 08/2012: 50.2 STA for the genoa sheets, 46.2 STA for the mainsheet, 40.2 STA for the halyards)
  • Jeanneau Sun Odyssey 349 — Harken 35.2 ST × 2 (Standard in every list: two self-tailing genoa winches within reach of the helms, with one Harken winch handle)
  • Jeanneau Sun Odyssey 440 — Harken 46.2 ST × 2 · 40.2 ST (Standard in the lists from November 2019 to September 2023: two genoa winches within reach of the helms, one coachroof winch to port)
  • Jeanneau Sun Odyssey 440 — Harken 40.2 ST · 46.2 ST × 2 (Options, November 2019 to September 2023: electric coachroof winch and two electric primary winches)
  • Pacific Seacraft 37 — Harken 46.2 STC × 2 · 16 STC × 3 (Yard lists of 1997, 2000 and 2002: two two-speed self-tailing genoa sheet winches and three single-speed self-tailing 16s for mainsheet and halyards, on chrome-plated bronze deck hardware)
