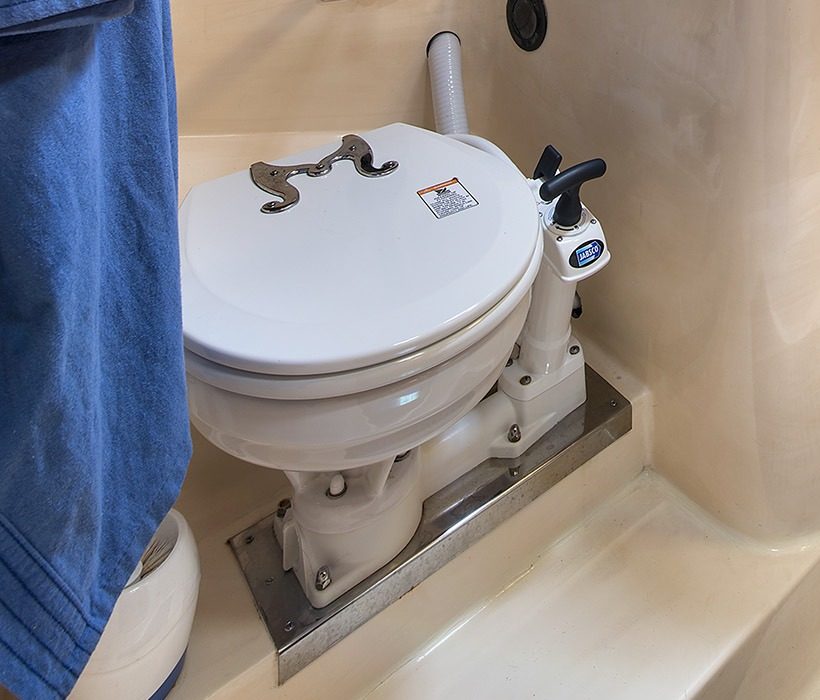

Jabsco Twist ’n’ Lock (29090 / 29120)

The Twist ’n’ Lock is Jabsco’s long-running hand-pumped marine toilet. A double-acting piston pump flushes and empties the bowl, and twisting the handle locks the outlet valve shut against flooding and backflow. It comes with a compact (29090) or regular (29120) bowl; the pump and its wear parts are the same on both. Four generations since 1986 — told apart by the handle colour — each have their own service kit, and the current complete pump fits all of them.

Manuals & documents
Wear parts & part numbers
Service intervals
Specifications
Good to know
Videos & how-tos
Fitted in
On the marketplace

Manuals & documents

The links go straight to Jabsco. We host no manuals or drawings — the manufacturer’s copy is the current one.

Installation, operation and servicing manual with parts list (29090-5000 / 29120-5000) Operation manual xylem.com · PDF · EN · FR · DE · ES
Parts list 29090-2 / 29120-2 series (1998–2007) Parts catalogue xylem.com · PDF · EN
Dimensional drawing Installation guide xylem.com · PDF · EN
29200 electric conversion kit: installation and operation manual Operation manual xylem.com · PDF · EN · FR · DE · ES
Twist ’n’ Lock product page Product page xylem.com · EN
Video: which Jabsco manual toilet do I have? Servicing guide xylem.com · EN
Video: replacing the pump assembly Servicing guide xylem.com · EN

Wear parts & part numbers

Part	OEM number	Also fits	Note
Service kit	`29045-3000`^1,2,3	—	-3000 (dark blue handle) and current -5000, compact and regular: base and top valve gaskets, seal housing, valve seat, joker valve, piston and lever O-rings, spring, buffer, small parts.
Service kit	`29045-2000`^1,2,4	—	-2000 generation (light grey handle, 1998–2007).
Service kit	`29045-0000`^1,2	—	-0000 generation (black handle, red PAR sticker, 1986–1997).
Joker valve	`29092-1000`^1,4	—	All generations; included in every service kit. Not to be confused with 29295-1011, the inlet non-return valve.
Seal housing (piston rod seal)	`29044-3000` · `29044-2000` · `29044-0000`^1,4,3	—	-3000/-5000, -2000 and -0000 in that order. Replace when water leaks round the piston rod.
Pump assembly	`29040-3000`^1,2,5	—	The current complete pump; fits all generations, compact and regular.
Base gasket	`29043-0000`^1,4	—	Base (bottom) valve gasket; in the service kits.
Top valve gasket	`29042-0000`^1,4	—	In the service kits.
Piston, rod & O-ring	`29046-3000`^1,4	—	1998 onwards.
Pump cylinder	`29051-2000`^1,4	—	1998 onwards.
Bowl-to-base mounting kit	`29047-0000`^1,4	—	Bowl O-ring, 4 bolts, nuts, washers and caps — the bowl-to-base seal; compact and regular, 1998 onwards.
Discharge elbow	`29029-1000` · `29091-1000`^1,4	—	Multi-angle elbow and its flange; 1998 onwards.
Base drain plug	`29028-2000`^1,4	—	Bayonet plug with O-ring, from 2003; up to 2002 the screw-in plug was 29028-1000.
Pump-to-bowl hose	`29035-1000` · `29035-1001`^1,4	—	Compact (29090) / regular (29120).
Seat & lid	`29097-1000` · `29127-1000` · `58104-1000` · `58104-2000`^1,4	—	Compact (all) / regular before 2018 / regular from 2018 (Jabsco logo on the bowl) / regular soft-close.
Hinge set	`29098-1000` · `29098-2000`^1,4	—	Compact / regular before 2018.
Vented loop	`29015-0000` · `29015-0010`¹	—	19 mm for the inlet / 38 mm for the outlet. Required whenever the bowl rim can sit below the waterline, heeled included.
In-line non-return valve (inlet)	`29295-1011`¹	—	Optional, next to the inlet seacock, so the flush pump stays primed.
Electric conversion kit	`29200-0120` · `29200-0240`⁶	—	12 V (25 A fuse) / 24 V (15 A fuse): a macerating pump that replaces the manual pump on both bowls.

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

Task	Interval
Full service	Once a year: winterise in autumn, overhaul with the service kit in spring. No in-season maintenance is normally needed¹
Pump seals	Piston-rod seal and piston O-ring at every overhaul — and at once if water leaks round the rod¹
Joker valve	Inspect at every overhaul; renew if damaged, stiff or scaled¹
Lubrication	After a lay-up, pump warm fresh water through; at overhaul, silicone grease on the piston O-ring and cylinder bore only¹
Winterising	Every autumn: drain the whole system (base plug out, discharge flange off, hoses off the seacocks); Jabsco advises against antifreeze, glycol-based only if any¹

Specifications

Sizes	Compact bowl (29090) and regular bowl (29120); -5100 with soft-close seat¹
Years built	-0000 from 1986 (black handle), -2000 from 1998 (light grey), -3000 from 2007/08 (dark blue), -5000 current^2,4
Inlet hose	19 mm (¾ in) hose and seacock¹
Discharge hose	38 mm (1½ in) hose and seacock; full 38 mm bore through pump and joker valve¹
Suction / discharge head	Self-primes from dry up to 1 m below the base; discharges up to 3 m above it¹
Pump strokes	About 7 full strokes per metre of discharge hose¹
Dimensions	Compact 330 × 425 × 455 mm; regular 345 × 485 × 470 mm¹
Weight	Compact 9.5 kg; regular 10.9 kg¹
Mounting	4 × 8 mm stainless bolts through 9 mm holes, self-locking nuts, large washers; bead of white silicone under the base rim¹
Flush water	Raw (sea or lake) water only — never the boat’s pressurised fresh-water system¹

Good to know

Identify the generation by the handle: black = -0000 (kit 29045-0000), light grey = -2000 (29045-2000), dark blue = -3000 or newer (29045-3000). If an old pump is too far gone, the complete pump 29040-3000 fits them all.²
Never lubricate the top or bottom valve gaskets, and no sealant on gaskets or hose tails. Only the piston O-ring and cylinder bore get silicone grease.¹
Waste coming back into the bowl points to the base valve gasket or the joker valve. If the bowl will not empty and the handle is hard to push, open the outlet seacock, shut the flush lever fully, then check joker valve, discharge hose and seacock for a blockage.¹
To take the handle off, grip the piston rod only within 16 mm of the handle, wrapped in tape — any mark on the rod’s sealing surface quickly ruins the new seal.¹
Clean with liquid ceramic cleaner and diluted disinfectant only. Bleach, acetone and thick toilet gels crack the plastic and damage valves, gaskets and the seat finish.¹
Close both seacocks after every use and whenever you leave the boat. If the bowl rim can ever sit below the heeled waterline, fit vented loops on inlet and outlet.¹

Videos & how-tos

Links to YouTube, nothing embedded. The maker’s own channel comes first; the rest are channels we found clear and correct for this model.

Full strip-down and rebuild of a Twist ’n’ Lock with the service kit Video Mothership Adrift Boat Maintenance · EN · 10 min
Replacing the joker valve, shown by Jabsco Video Jabsco Flojet Rule · maker’s channel · EN · 3 min
Swapping the complete Twist ’n’ Lock pump assembly, shown by Jabsco Video Jabsco Flojet Rule · maker’s channel · EN · 9 min
No water coming in: replacing the top valve gasket, shown by Jabsco Video Jabsco Flojet Rule · maker’s channel · EN · 4 min

Fitted in

Boats whose builder lists it as standard or optional equipment:

Leopard 42 — Jabsco manual, large bowl (1st generation: one per cabin (2002 list))
Axopar 28 — Jabsco Twist ’n’ Lock (MY2014 toilet package: standard on the 28 AC, option on the Cabin, T-Top, Open and OC; manual toilet with 45 l septic tank, deck outlet and 12 V electric macerator)
