Princess · Motor yacht

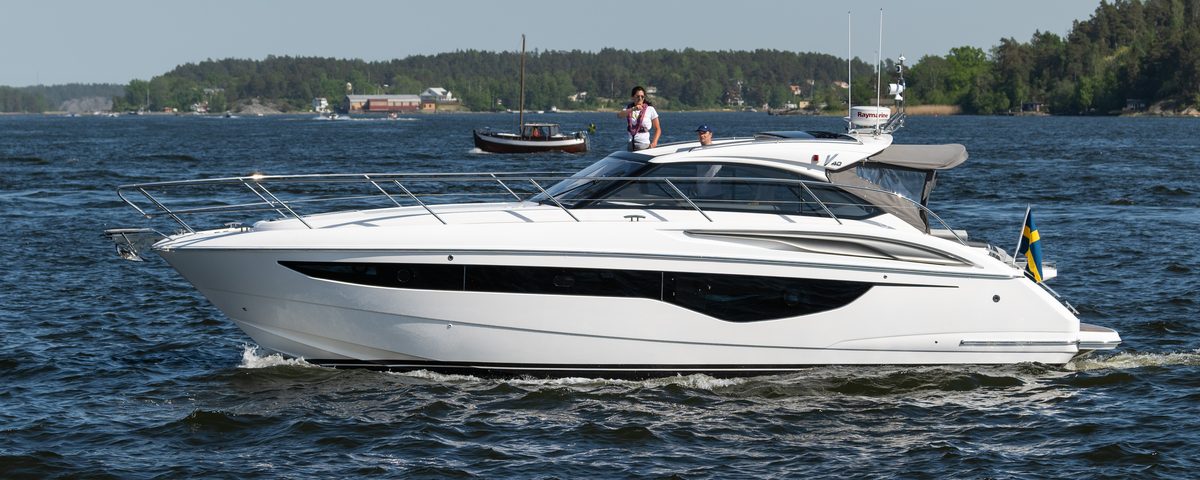

Princess V40
The Princess V40 is the smallest sports yacht in Princess Yachts’ V Class, built in Plymouth, England, since its debut at boot Düsseldorf in 2017: a 12.98 m deep-V hardtop boat with an electric sliding sunroof, a wet bar in the cockpit, an owner’s cabin forward with en-suite bathroom and a twin cabin aft. Every V40 has twin Volvo Penta D6 diesels on duo-prop sterndrives: Princess listed the D6-330 DP until 2019, then the D6-340 DP, and since 2024 the table on its model page shows the D6-380 DP, while the brochure still names the D6-340 DP. The 60th Anniversary Edition, presented at boot Düsseldorf 2025, keeps the same dimensions and layout. Princess publishes no owner’s manual online: a set of manuals comes with the boat, and boats with Princess Connect have their user guides in the app.
Manuals & documents
The links go to Princess’s own documents — some as archived copies of pages the maker has since taken down. We host no manuals or drawings.
- Princess V40 and V40 60th Anniversary Edition model page, October 2026 (archived copy of the current page): specification table, layouts, FAQ Archived maker page web.archive.org · EN
- V Class brochure (interactive), V40 pages: layouts, principal dimensions and the full standard specification Brochure brochures.princessyachts.com · EN
- V Class brochure as a PDF, with the V40 pages (large file: 105 MB, 93 pages) Brochure brochures.princessyachts.com · PDF · EN
- Princess V40 model page, July 2017 (archived): first specification with the D6-330 DP and the full standard equipment list Archived maker page web.archive.org · EN
- Princess V40 model page, October 2019 (archived): first page with the D6-340 DP, equipment list Archived maker page web.archive.org · EN
- Princess V40 model page, July 2022 (archived): detailed standard specification with the D6-340 Archived maker page web.archive.org · EN
- Princess V40 model page, June 2024 (archived): first specification table with the D6-380 DP Archived maker page web.archive.org · EN
Equipment & its manuals
Standard equipment as the builder’s documents list it. Boats were ordered with options and refitted since — check what is actually aboard.
| Item | Model | Manual / page | Note |
|---|---|---|---|
| Engine | Volvo Penta D6-330 DP × 21,2Model pages from July 2017 to August 2019: 2 × 330 mhp, the only engine listed (‘Engine options – diesel’); maximum speed range 36–38 kn | Volvo Penta D6 Parts & service page | Princess writes ‘Twin Volvo D6-330 DP’. |
| Engine | Volvo Penta D6-340 DP × 23,4,5,6,7Model pages from October 2019 (‘D6-340DP’, 37–39 kn) and 2022–2023 (‘D6-340’, 34–36 kn): 2 × 340 mhp, the only engine listed; also the engine in the current V Class brochure (34–36 kn) and in the FAQ of the current model page (2026) | Volvo Penta D6 Parts & service page | |
| Engine | Volvo Penta D6-380 DP × 28,9,7,6Specification table of the model page from 2024 (36–38 kn) to October 2026 (34–36 kn), the 60th Anniversary Edition included: 2 × 380 mhp, the only engine listed | Volvo Penta D6 Parts & service page | The brochure and the FAQ on the same page still say D6-340 DP, and Princess does not say from which boat on the D6-380 DP was fitted: read the engine plates before ordering parts. |
| Sterndrive | Duoprop (Volvo Penta DP) × 21,4,6All years: twin duo-prop sterndrives with sterndrive trim controls at the helm; leg model and ratio not named | — | Draft 0.56 m with the drives raised, 1.02 m lowered. |
| Trim tabs | —1,4,6All years: trim tabs with indicators, controls at the helm; make not named | — | |
| Steering | —1,3,4,6All years: power-assisted electro-hydraulic steering, with hydraulic back-up on the 2017–2019 pages; adjustable steering wheel from the 2022 list; make not named | — | |
| VHF | —1,4,6All years: VHF at the helm (‘VHF/RT’ on the 2017 page, with DSC in the 2022 list and the brochure); make not named | — | |
| Instruments | —1,4,6All years: speed and distance log (with sea temperature in the 2022 list and the brochure), echo sounder with alarm, high-speed compass, engine instruments and fuel gauges; makes not named | — | Princess’s V40 lists name no chart plotter, radar or autopilot. |
| Windlass | —1,4,6All years: reversible electric anchor winch with remote control at the helm; stemhead roller with automatic launch and retrieve (2022 list and brochure); make not named | — | A back-up handle for the winch is supplied. |
| Anchor | Delta 16 kg1,4,6All years: self-stowing 16 kg (35 lb) Delta anchor with 30 m of chain | — | |
| Toilet | —1,4,6All years: electric fresh-water toilet in the en-suite bathroom; make not named | — | The separate shower compartment has an automatic pump-out. |
| Fridge | —1,4,6All years: galley refrigerator with freezer compartment and a top-loading cool box in the cockpit wet bar; makes not named | — | |
| Stove | —1,4,6,7All years: 2-zone gas hob with flame-failure device and remote gas solenoid, combination microwave/conventional oven with grill; makes not named | — | Gas locker for two bottles, vented and drained overboard. Boats for North America cook electrically instead of with gas. |
| Audio system | Fusion Apollo RA-6701,2,3,4,6From the 2022 list and in the current brochure: with Wi-Fi and Bluetooth, Fusion CL602 6″ speakers in the saloon and FR-602 6″ speakers in the cockpit · earlier boats: radio/DVD/MP3 system (2017 to August 2019), radio with streaming (October 2019), makes not named | — | |
| Batteries | —1,4,6All years: two heavy-duty engine-start batteries and two heavy-duty auxiliary batteries, battery link with remote control at the helm; remote battery master switches in the 2022 list and the brochure; makes and capacities not named | — | From the 2022 list both banks charge through a voltage-sensitive relay that parallels them while a charging source is present. |
| Charger | 12 V · 35 A · 75 A1,3,4,6Float charger: 35 A on the 2017–2019 pages, 75 A in the 2022 list and the current brochure; make not named | — | |
| Shore power | 30 A · 220/240 V1,2,3,4,6All years: shore inlet in a cockpit locker, with polarity check and earth-leakage trip; rated 30 A on the pages from 2019 on and in the brochure | — | |
| Water heater | 32 l1,4,6All years: 32 l (7 gal) calorifier heated by the engines and by a 240 V immersion heater; make not named | — | |
| Water pump | —4,62022 list and current brochure: automatic fresh-water pump with filter; make not named | — | |
| Bilge pump | —1,4,6All years: six automatic electric bilge pumps, two of them in the engine room, the others in the rudder area, lazarette and forward accommodation, plus a high-capacity manual pump with valve system and suction points in the same areas; makes not named | — | Controls and ‘pump running’ warning lights at the helm. |
| Remote monitoring | Princess Connect6,9,7Current brochure and 2025–2026 model pages, which call it standard on all new Princess yachts: telemetry and maintenance system with an app for remote monitoring, maintenance reminders and a digital library of user guides and manuals; earlier boats may not have it | — | |
| Sliding roof | —1,4,6All years: electrically operated sliding sunroof in the fixed GRP hardtop with integrated radar arch | — | |
| Barbecue | —1,4,6Option, all years: electric barbecue in the cockpit wet bar; make not named | — | |
| Swim platform | —1,3,6Option on the 2017–2019 pages: electro-hydraulic raise/lower mechanism for the bathing platform; standard is a fixed teak-laid platform with manual swimming ladder and hot and cold shower | — | |
| Fuel filter | Volvo Penta × 21,3,4,62022 list and current brochure: one Volvo fuel filter/water separator per engine, with water warning lights at the helm · 2019 pages: duplex fuel filters/water traps with audible and visual alarm · 2017 page: high-capacity fuel filters/water traps | — | |
| Fire extinguishers | —1,4,6All years: automatic engine-room extinguisher with manual override and warning at the helm; four hand extinguishers (owner’s cabin, guest cabin, galley and cockpit or helm); makes not named | — |
Specifications
| Length overall | 12.98 m (42 ft 6 in) including the pulpit; without the pulpit 12.65 m (41 ft 6 in) on the 2017–2023 pages, 12.35 m (40 ft 6 in) on the 2024–2026 pages and in the brochure1,2,4,5,8,9,7,6 |
|---|---|
| Beam | 3.81 m (12 ft 5 in)1,7,6 |
| Draft | 0.56 m (1 ft 10 in) with the drives raised, 1.02 m (3 ft 4 in) with the drives lowered1,7,6 |
| Displacement | About 9592 kg (21147 lb) on the 2025–2026 pages and in the current brochure; earlier pages: 9100 kg (July 2017), 10145 kg (2019–2023), 10098 kg (2024). Princess counts 50 % fuel and water and a liferaft, no options1,2,3,4,5,8,9,7,6 |
| Engine options | 2 × Volvo Penta D6 diesel with duo-prop sterndrives, one rating at a time: D6-330 DP, 2 × 330 mhp (2017–2019); D6-340 DP, 2 × 340 mhp (from October 2019; still named in the current brochure and the FAQ); D6-380 DP, 2 × 380 mhp (model-page table from 2024)1,2,3,4,8,7,6 |
| Drive | Twin duo-prop sterndrives (Volvo Penta DP) with electronic engine and gear-shift controls and sterndrive trim at the helm; trim tabs; leg model and ratio not named1,4,6 |
| Maximum speed | Maximum speed range as Princess gives it: 36–38 kn with the D6-330 DP (2017–2019); 37–39 kn with the D6-340 DP (October 2019), 34–36 kn on the 2022–2023 pages and in the current brochure; 36–38 kn with the D6-380 DP (2024), 34–36 kn on the 2025–2026 pages, whose text also says ‘up to 38 knots’1,2,3,4,5,8,9,7,6 |
| Fuel tank | 730 l in two interconnected tanks of NS8 marine-grade aluminium alloy (161 gal / 193 US gal on the 2024–2026 pages, 160 gal / 192 US gal on earlier pages); fillers on both side decks1,4,8,7,6 |
| Water tank | 290 l plus a 32 l calorifier (322 l in total) on the 2017–2023 pages; from 2024 listed as 288 l (63 gal / 76 US gal) without the calorifier1,4,5,8,7,6 |
| Holding tank | 85 l (19 gal / 22 US gal) black-water tank (2025–2026 pages and current brochure)9,7,6 |
| Cabins | 2: owner’s cabin forward with double bed and en-suite bathroom (also reached from the saloon), guest cabin aft with two single beds (sliding conversion to a double and a sofa berth as options); one bathroom with electric toilet and separate shower1,4,7 |
| Berths | 4 in two cabins, plus the U-shaped saloon sofa, which converts to a double1,4 |
| Voltage | 12 V DC (2022 list and current brochure; the 2017–2019 pages head the section ‘24 Volt’ but list a 12 V charger); 220/240 V AC from the shore inlet1,3,4,6 |
| Hull | Deep-V hull; the FAQ on the current page (2026) calls it lightweight and resin-infused, without describing the laminate further1,7 |
| Builder | Princess Yachts, Plymouth, United Kingdom7 |
| Versions | One hull and one layout: V40 (2017–2024) and V40 60th Anniversary Edition (from boot Düsseldorf 2025), which Princess lists with the same dimensions and layout9,7 |
| Years built | Since 2017 (debut at boot Düsseldorf 2017); 60th Anniversary Edition from boot Düsseldorf 2025; still on Princess’s range in October 20261,7 |
Good to know
- Read the engine plates before ordering parts. Princess listed the V40 with twin Volvo Penta D6-330 DP until 2019, then the D6-340 DP; from 2024 the table on its model page shows the D6-380 DP, while the brochure and the FAQ on the same page still say D6-340 DP, and Princess does not say from which boat on the change applies.1,3,8,7,6
- The length depends on the page: 12.98 m including the pulpit in every year, but without the pulpit 12.65 m on the 2017–2023 pages and 12.35 m from 2024, with the same layout. For a marina berth or an insurance quote, give the length with the pulpit, or measure the boat.1,4,8,7,6
- The 60th Anniversary Edition (from boot Düsseldorf 2025) is an edition of the V40, not a new model: Princess lists it with the same dimensions and layout, so search and compare it as a V40. Its page gives a displacement of about 9592 kg, against 10145 kg on the 2019–2023 pages and 10098 kg in 2024, so use the figure that matches the boat’s year.3,4,8,9,7
- Princess publishes no options list for the V40: its lists only mention an electric barbecue in the wet bar and an electro-hydraulic bathing platform. A generator, air conditioning, bow thruster, chart plotter, radar or autopilot on a used boat was added as an option or later, so note make and model on board before ordering parts. Boats for North America have air conditioning and an upgraded generator as standard and cook electrically.1,4,7
- Princess has no owner’s manual for download: each boat came with a set of manuals (owner’s manual and engine manual), and on boats with Princess Connect the app holds a library of user guides and manuals. Ask the seller for the manual set, or a Princess distributor for copies.1,6,7
- Each engine has its own Volvo fuel filter/water separator with a water warning light at the helm (the 2019 pages list duplex filters/water traps with an alarm). The two aluminium tanks, 730 l in all, are connected, with fillers on both side decks and remote fuel cocks in a cockpit locker: drain the separators at every service.3,4,6
