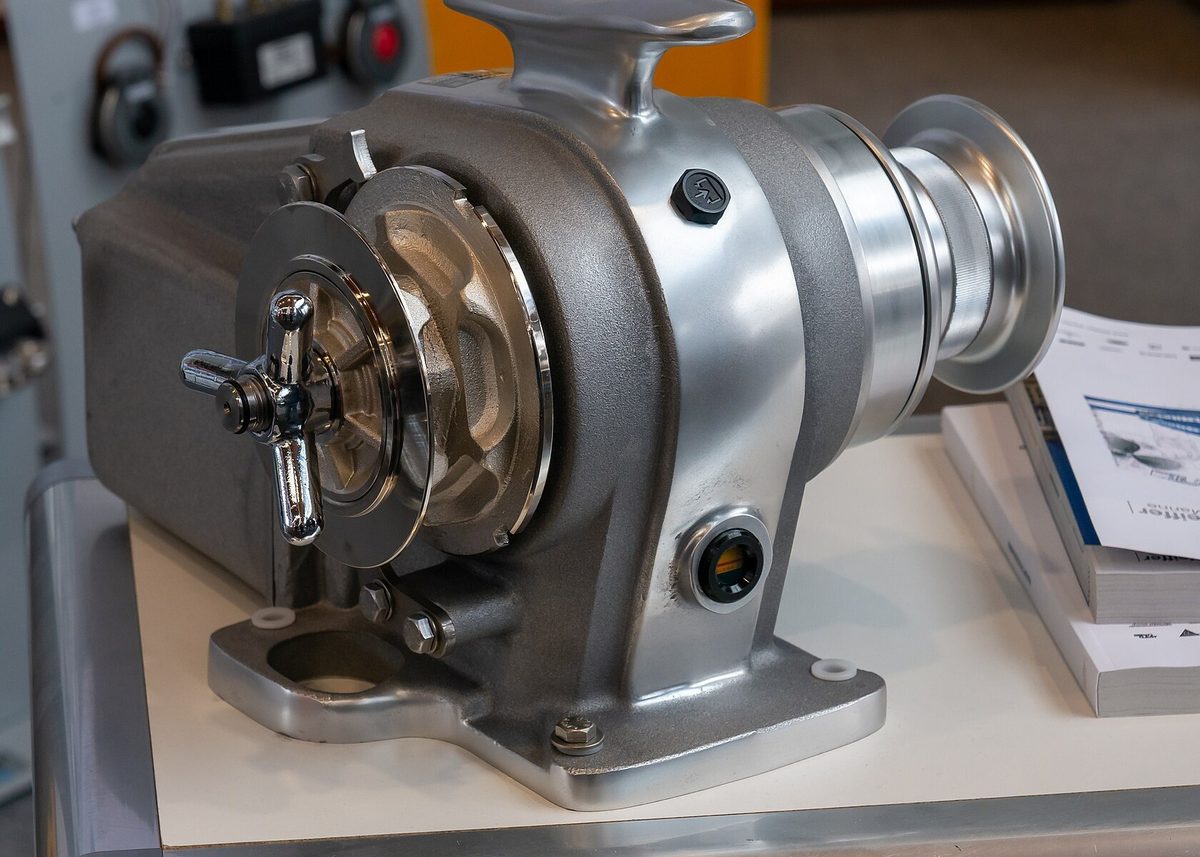

Lofrans Tigres – Windlass
Photo: Matti Blume, CC BY-SA 4.0, via Wikimedia Commons (cropped)

Lofrans · Windlass

Lofrans Tigres

The Tigres is Lofrans’ best-known horizontal windlass: an anodised aluminium body on deck with the chain gypsy on one side and an independently driven rope drum on the other, a 1500 W DC motor under an IP67 cover, manual chain release, manual override by handle and a worm gearbox in an oil bath with a sight glass. It sits on a great many cruising yachts and motorboats and is still built by Lofrans (founded 1966 in Monza, today in Cambiago near Milan) in 12 V and 24 V and, with the pre-installed rope kit, also in 48 V. Two motor generations exist: the ‘Tigres 2011’ motors 602557/602558 with a 14 mm shaft and the motors 634369/634370 with a 17 mm shaft, each with its own worm. The gypsies are shared with the Kobra, Cayman and Royal; the 12 mm chain versions 600797/600818 are listed without published data.

Manuals & documents

The links go straight to Lofrans. We host no manuals or drawings — the manufacturer’s copy is the current one.

Wear parts & part numbers

PartOEM numberAlso fitsNote
Service kit720501,2—Lofrans’ maintenance kit for the Tigres, meant for the maintenance programme; Lofrans does not itemise its contents online.
Chain gypsy6309681,3—6 mm ISO 4565 / DIN 766 (#276A). All Tigres gypsies also fit the Kobra, Cayman and Royal; when changing chain size, change the outer cone clutch too.
Chain gypsy6309781,3—7 mm ISO 4565 / 1/4 in G40 (#276B). Cut for ISO 4565, not for 7 mm DIN 766.
Chain gypsy6309941,3—8 mm ISO 4565 / DIN 766 (#276C), the size of the standard 8 mm models.
Chain gypsy6310111,3—10 mm ISO 4565 / 3/8 in HT (#276E).
Chain gypsy6311181,3—10 mm DIN 766 (#276F).
Chain gypsy6310771,3—5/16 in HT (#276D).
Chain gypsy6311201,3—3/8 in BBB (#276G).
Chain gypsy6311221,3—3/8 in PC, proof coil (#276H).
Motor634369 · 6343701,4—634369 = 12 V, 634370 = 24 V: 1500 W, 3 terminals, triangular flange, 17 mm shaft (Jimmy Green’s selection guide); runs with the Ø17 mm worm 635691. Also fitted to the Progress 2 and Leopard.
Motor602557 · 6025581,4—‘DC motor Tigres 2011’: 602557 = 12 V, 602558 = 24 V, 1.5 kW, 3 terminals, triangular flange. Jimmy Green lists the 12 V version with a 14 mm shaft, which takes the Ø14 mm worm 635682. Measure the shaft before ordering.
Gear set635682 · 6356911—Worms: 635682 (#483a) for the 14 mm motor shaft, 635691 (#483) for the 17 mm shaft. The worm has to match the motor, not the age of the windlass.
Gear set6315471—Wormwheel (#476), all Tigres.
Driveshaft kit6307321—Main shaft (#478), all Tigres; sold as a single part, not a kit.
Clutch cone631842 · 631846 · 6318551—Lofrans lists three cone clutches (#318A, #318B, #277) without saying which is the inner and which the outer cone; identify yours in the exploded view on the product page. The dog clutch is 631798 (#341), its cast version 631811 (#477).
Dog clutch6317981—#341; a cast version is listed as 631811 (#477).
Rope drum6314601—Aluminium rope drum (#343), all Tigres.
Motor cover6346551—Aluminium cover (#465A); gearcase 631677 (#475A), cover 631590 (#481).
Oil sight glass6334261—#407, all Tigres.
Oil filler plug6354421—Gearbox filler plug, 1/4 in.
Rope kit (chain/rope conversion)6365665,2—Converts an existing Tigres to 8 mm ISO / 5/16 in HT chain with 14 mm rope: body, finger, stripper, finger pin, gypsy, inner cone clutch, spring, pawl and screws.
Seal set6332521,6—Gearbox shaft seal (#463), all Tigres; Lofrans’ maintenance programme replaces all gaskets together with the oil (step D).
Roller bearing6317701—Bearing 6005 2RS, stainless (#903), listed twice in the exploded view, so two per windlass. Also on the list: bearings 630885 AX2542 (#485) and 634814 RAX 720 (#346), bearing rings 631573 (#347), 631574 (#484) and 633260 (#348).
Standard pawl6353421—Pawl (#332) of the manual chain release.
Pawl spring633530 · 6359181—633530 = spring Tigres (#342); 635918 = spring (#1326) shared with the Kobra and Cayman.
Chain stripper635271 · 6352721,6—635271 = stripper (#335), 635272 = alternative stripper (#335A); check the exploded view for the one on your windlass. Refit its screws with a chromate-free anti-galvanic compound (programme step F).
Emergency handle635548 · 6333141—
Circuit breaker187333 · 187332 · 1873311,7,6—187333 = 100 A thermal-magnetic for 12 V, 187332 = 70 A thermal for 24 V, 187331 = 35 A thermal for 48 V, each with plate and LED. Ratings from the manual’s table for the 1500 W Tigres; Lofrans’ product table names the codes for the rope-kit models.
Control box / solenoid—2,8—Dual-direction solenoid pack, supplied with the windlass. Lofrans sells control boxes by voltage, motor power and number of terminals (the Tigres motor has 3 terminals, 1500 W), but no Lofrans page names a code for the Tigres, so none is given here.
Fastening kit601362 · 6013881—Stud kits M8 × 45 (#240) and M8 × 218 (#489) for mounting on deck; bush kit 601433 (#268).

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

TaskInterval
GreaseWash all surfaces with fresh water and soap (no chlorine), remove the salt, grease the main-shaft threads and clutch cones and check for corrosion: every 3 months if the boat is used more than 6 months a year or chartered, every 6 months for 2–6 months’ use, once a year for under 2 months’ use6
ClutchWhen greasing the cones (step B) or changing chain size: unscrew the gypsy with the handle, slide off the upper cone, gypsy and lower cone, wash with running water (never a pressure washer), check for corrosion or mechanical damage, grease the threads and all moving parts on reassembly6
Electrical connectionsEvery 12 months: check the motor terminals, measure the voltage drop at the terminals and make sure the control box is in a dry place6
Gear oil changeReplace all gaskets and the gearbox oil (0.5 l SAE 90–140): every 24 months with 2–6 or more than 6 months’ use a year, every 12 months on charter boats, every 36 months with under 2 months’ use6,9
Full serviceEvery 36 months (every 24 months on charter boats): lift the windlass off the deck, clean the salt from under the base, check for corrosion and re-bed it. Charter boats also every 36 months: remove the stainless deck and stripper screws and refit them with a chromate-free anti-galvanic compound6

From the maintenance programme (section 6.1, page 13) in Lofrans’ installation and user’s manual for the Lion 1000, Cayman 88, Tigres and Falkon. Lofrans gives calendar intervals by months of use per year, not operating hours, and the warranty lapses if the programme is not followed. Disconnect the power before any maintenance.

Specifications

TypeHorizontal windlass with chain gypsy and independent rope drum; anodised aluminium body, motor on deck under an IP67 cover; manual chain release and manual override; automatic free fall optional on 12 V and 24 V1,5
Voltage12 V or 24 V DC; 48 V only as the rope-kit models 636691/6366921,5
Motor1500 W DC motor with 3 terminals (reversing through the control box), IP67 motor cover; worm gearbox in an oil bath with sight glass1,5,4
Max pull / working load12 V: 1350 kg max, working load 195 kg (chain-only models) · 1500 kg / 190 kg (rope-kit models); 24 V: 1400 kg / 195 kg · 1590 kg / 200 kg; 48 V: 1000 kg / 120 kg1,5
Current drawAt working load 160 A (12 V), 90 A (24 V), 33 A (48 V). Supply cables in copper, insulation rated at least 105 °C, sized for the total run (positive + negative): 12 V 35 mm² up to 15 m; 24 V 35 mm² up to 15 m, 50 mm² beyond; 48 V 16 mm² up to 15 m, 25 mm² beyond1,6
Chain speed12 V: 14 m/min at working load, 33 m/min max; 24 V: 16 / 33 m/min; 48 V: 20 / 20 m/min1,5
Chain sizeGypsies for 6 mm ISO 4565/DIN 766, 7 mm ISO 4565 / 1/4 in G40, 8 mm ISO 4565/DIN 766, 10 mm ISO 4565 / 3/8 in HT, 10 mm DIN 766, 5/16 in HT, 3/8 in BBB and 3/8 in PC; the 12 mm versions 600797/600818 come without published data1,3
Rope sizeRope-kit models: 14 mm 3-strand or 8-plait rope with 8 mm ISO / 5/16 in HT chain, 16 mm rope with 10 mm ISO / 3/8 in HT chain; the upgrade kits 636566 (8 mm) and 636616 (10 mm) convert an existing Tigres5,1
Breaker / fuseThermal-magnetic breaker with a trip curve matched to the motor, ordered separately: 100 A at 12 V (Lofrans 187333), 70 A at 24 V (187332), 35 A at 48 V (187331); switch it off whenever the windlass is not in use6,1,7
ControlDual-direction control box (solenoid pack) supplied as standard: self-extinguishing polyester housing, IP56, terminals reachable from outside; mount it dry near the windlass, and the up/down panel where the operator can see the windlass2,8,6
Gear oilSAE 90 to SAE 140 gear oil (GL1–GL4); level visible in the sight glass 633426, filled through the oil plug 6354429,10,1
Gear oil capacity0.5 l (gearbox)9,10
DimensionsPer Lofrans’ dimension drawing (1500 W): A 290 mm, D Ø85 mm, F 415 mm, L 90 mm, M 155 mm, N 185 mm; deck cut-out on the PDF template5,11
Weight28 kg; Lofrans’ product table gives 30 kg for the 48 V rope-kit models5,1
ModelsChain only: 418407 (12 V, 8 mm), 418409 (24 V, 8 mm), 470060 (12 V, 10 mm ISO, gypsy starboard / drum port), 220290 (24 V, 10 mm ISO), 600055 (12 V, 10 mm DIN), 600059 (24 V, 10 mm DIN), 600797/600818 (12/24 V, 12 mm). With rope kit: 636766/636767 (12 V, 8/10 mm), 636768/636769 (24 V, 8/10 mm), 636691/636692 (48 V, 8/10 mm)1,5
Years builtCurrent model, in Lofrans’ range in 2026; Lofrans publishes no launch year. The motors 602557/602558 are labelled ‘Tigres 2011’ in the spare-parts list1
Warranty3 years limited, on registration with the serial number (black label on the body or base); keeping to the maintenance programme is a condition12,6

Good to know

  • Look at the sight glass before the season: the gearbox holds only 0.5 l of SAE 90–140 gear oil, so even a small loss matters. If the level keeps dropping, check the gearbox shaft seal 633252 rather than just topping up.9,1
  • Before buying a motor or worm, measure the motor shaft: 14 mm on the ‘Tigres 2011’ motor 602557, 17 mm on 634369/634370, each with its own worm (635682 or 635691). Count the terminals too: if the number changes, the control box has to change with it.4,1
  • At anchor, never let the windlass take the load: always use a chain stopper (or snubber) so wind, current and waves pull on the deck fitting, not on the gearbox. If the windlass stalls, slips or goes into self-protection while hauling, find the cause before carrying on.6
  • Switch the breaker off whenever the windlass is not in use. It protects cables and motor against overload and short circuit, not against overheating from long runs; after it trips, wait a few minutes before resetting. A windlass that turns slowly usually has undersized cables, bad connections, dirty brushes or water in the motor, in that order of likelihood.6
  • Lofrans recommends lead-acid, AGM or gel batteries. A lithium bank (Li-ion or LiFePO4) will quickly damage motor, control box and gearbox unless the installation has been specified for it.10
  • To change chain size, change the gypsy and the outer cone clutch; the gypsies are the same on the Kobra, Cayman and Royal. Mind that Lofrans’ 7 mm gypsy is cut for ISO 4565 chain, not for 7 mm DIN 766, and check that the windlass can take the heavier chain before going up a size.3
