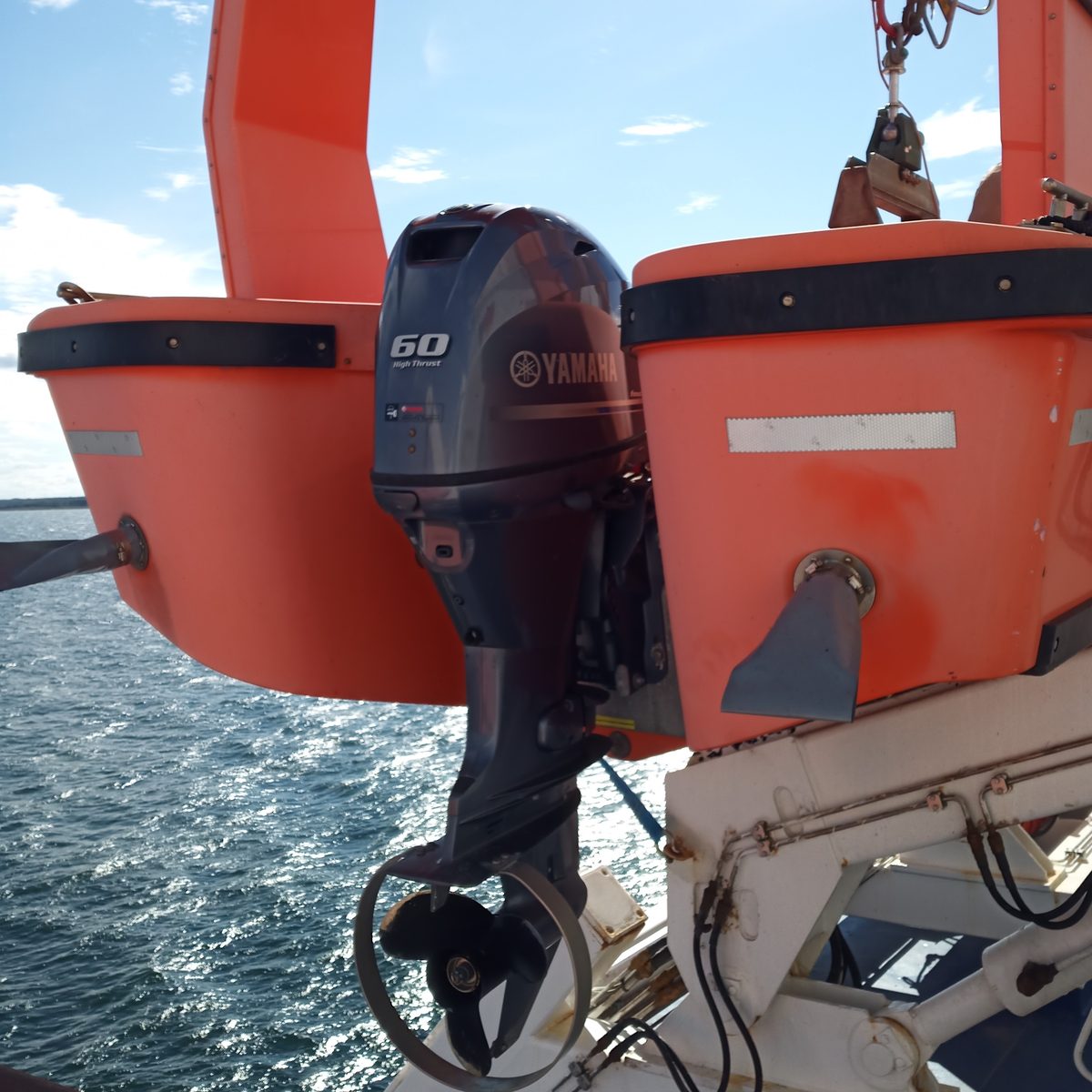

Yamaha F50 / F60 / F70

Yamaha’s 1-litre midrange four-stroke: an inline four of 996 cc with a belt-driven overhead camshaft, electronic fuel injection and a spin-on oil filter, built since 2005 as the successor of the older F50/F60 generation. The F50 and F60 are the same 8-valve engine in two power settings and share almost every service part; the F70 of 2010 adds a 16-valve head, LKR7E plugs and the larger 2.33:1 gearcase. The T50 and T60 High Thrust versions (FT50 and FT60 in Europe) use that larger gearcase with big Dual Thrust propellers for heavy boats, while the F models are common on aluminium fishing boats, pontoons and small GRP boats. Since 2005 mostly the names have changed (F50F, F50H, F50L, now simply F50), so most wear parts below fit every year; the older F50A/F60A generation and the jet-drive F60 are not covered here.

Manuals & documents
Wear parts & part numbers
Service intervals
Specifications
Good to know
Videos & how-tos
On the marketplace

Manuals & documents

The links go straight to Yamaha. We host no manuals or drawings — the manufacturer’s copy is the current one.

Owner’s manual F40L, F40N, F50, T50, F60, T60, F70 (6C1-28199-7R, December 2025) Operation manual cdn2.yamaha-motor.eu · PDF · EN · DE · FR · ES
Owner’s manual F40L, F40N, F50L, FT50N, F60H, FT60J, F70B (6C1-28199-7P-E0, November 2024) Operation manual cdn2.yamaha-motor.eu · PDF · EN
Owner’s manual F40H, F40G, F50H, FT50J, F60F, FT60G, F70A (6C1-28199-7M-E0, November 2022) Operation manual cdn2.yamaha-motor.eu · PDF · EN
Owner’s manual F40H, F40G, F50H, FT50J, F60F, FT60G, F70A (6C1-28199-7B, November 2012, the oldest edition online) Operation manual cdn2.yamaha-motor.eu · PDF · EN · DE
Yamaha Motor Europe owner’s manual library (outboards from 2013, all languages) Manual portal yamaha-motor.eu · EN
Yamaha Motor Europe parts catalogue Parts catalogue yamaha-motor.eu · EN
Yamaha Outboards (US): owner’s manuals by year, model and primary ID Manual portal yamahaoutboards.com · EN
Yamaha Outboards (US): F70, F60 and F50 model page with specifications Product page yamahaoutboards.com · EN

Wear parts & part numbers

Part	OEM number	Also fits	Note
Raw water pump impeller	`6H3-44352-00-00`^1,2,3,4,5	—	The same impeller in every F50, F60, F70, T50/FT50 and T60/FT60 catalogue from 2005 to 2025; it also comes in each of the three pump kits below.
Water pump repair kit	`63D-W0078-03-00`^6,7,8,9,10replaces 63D-W0078-01-00	—	F50 and F60 only (small gearcase, propeller mark G: F50F/H/L, F60C/F/H and the US F50/F60). Impeller 6H3-44352-00-00, cartridge insert 63D-44322-00-00, outer plate 63D-44323-00-00, gaskets and key. Not for the F70 or the T50/T60.
Water pump repair kit	`6CJ-W0078-01-00`^{11,12,13,14,15}replaces 6CJ-W0078-00-00	—	F70 only (F70A, F70LA, F70B): its own pump housing, outer plate 6CJ-44323-00-00 and cartridge gasket 6CJ-44324-00-00; the impeller is the common 6H3-44352-00-00.
Water pump repair kit	`6H3-W0078-02-00`^16,17,18,19	—	T50 and T60 High Thrust (FT50G, FT60D, FT50J, FT60G, T50LB, T60LB and the US T50/T60): insert 663-44322-00-00, outer plate 6H3-44323-00-00, impeller 6H3-44352-00-00.
Engine oil filter	`5GH-13440-90-00`^6,7,21,22replaces 5GH-13440-20-00replaces 5GH-13440-50-00replaces 5GH-13440-60-00replaces 5GH-13440-61-00	Sierra `18-8700`²⁰	Spin-on cartridge, 18 N·m. Catalogues from 2007 on list -20, -50, -60 or -61; all are now supplied as -90. On a first-year 2005 engine, confirm the number with your dealer.
Fuel filter (engine)	`6D8-WS24A-00-00`^6,11,23,24replaces 6D8-24563-00-00	—	Element in the clear filter cup on the engine (cup 6D8-WS24B-00-00, formerly 6D8-24562-00-00; cup gasket 6D8-24564-00-00), for engines from about 2006. The 2005 F50F/F60C catalogues show the earlier element 68V-24563-00-00 with cup 68V-24521-01-00.
Fuel filter (engine)	`6C5-24251-01-00`^6,11,25,26replaces 6C5-24251-00-00	—	In-line low-pressure filter (‘strainer 1’) in the fuel hose between the fuel connector and the low-pressure pump under the cowling; the same on every model and year.
Fuel filter (engine)	`6C5-13915-01-00`^6,11,27,28replaces 6C5-13915-00-00	—	High-pressure filter inside the vapour separator tank, a dealer job; Yamaha’s service-parts list pairs it with the float chamber gasket 6C5-14984-10-00.
Spark plug	`94702-00418-00`^29,6,16,7,30	NGK `DPR6EB-9`^29,30	F50, F60, T50 and T60 (8 valves): 4 per engine, gap 0.8–0.9 mm, 17 N·m. The same plug in every catalogue from 2005 to 2025; not for the F70.
Spark plug	`94702-00429`^{29,31,11,12,32}	NGK `LKR7E`^29,31,32	F70 only (16 valves): 4 per engine, gap 0.8–0.9 mm, 17 N·m. The dealer catalogue marks the Yamaha number as discontinued without replacement, so buy the NGK LKR7E itself.
Thermostat	`66M-12411-01-00`^6,11,21,33replaces 6G8-12411-03-00	—	Under the thermostat cover on the cylinder block; all models and years.
Thermostat gasket	`62Y-12414-01-00`^6,11,7,34,35replaces 62Y-12414-00-00	—	Thermostat cover gasket, on Yamaha’s service-parts list; fit a new one whenever the cover comes off.
Thermostat gasket	`688-12412-00-00`^36,21,37,38	—	Rubber seal around the thermostat, the same in every catalogue checked. One source (Yamaha catalogues at one dealer).
Timing belt	`6C5-46241-00-00`^{39,40,41,42,43,29}	—	One belt for every F50, F60, F70, T50/FT50 and T60/FT60 catalogue checked from 2005 to 2025 (listed in the ‘oil pump’ group with the camshaft pulleys). Check it yearly, replace it at 1000 h.
Anode (engine)	`62Y-11325-00-00`^{6,11,44,45,46}	—	One under the small cover next to the thermostat on every engine (grommet 66M-11328-00-00, cover 66M-11327-00-94). On 2005–2008 engines four more of the same anode sit in the cylinder head, each under its own grommet and cover.
Anode (engine)	`6G8-11325-00-00`^{6,11,47,48,49}	—	Screw-in cylinder head anodes in the catalogues from 2010 on: 4 on the F50, F60, T50 and T60, 3 on the F70, each under blind plug 6G8-11197-A0-00 with O-ring. Earlier engines use 62Y-11325-00-00 in the head.
Anode (clamp bracket)	`65W-45251-00-00`^6,11,16,50	—	Three on the clamp and swivel brackets (Yamaha’s service list: 2 + 1); the same on all models.
Anode (lower unit)	`67C-45371-00-00` · `67F-45371-00-00`^{6,11,16,51,52}	—	Trim tab anode: 67C-45371-00-00 on the F50 and F60 (propeller mark G), 67F-45371-00-00 on the F70, T50, T60 and FT50/FT60 (mark K).
Anode (lower unit)	`67C-45251-00-00`^6,7,53,54	—	F50 and F60 only: square anode bolted to the anti-cavitation plate in addition to the trim tab; the F70 and T models have only the trim tab anode. One source (Yamaha catalogues at one dealer).
Drain plug gasket	`90430-14M09-00`^{6,11,55,29,56}	—	Engine oil drain screw gasket; fit a new one at every oil change (drain screw 27–28 N·m).
Gear oil plug gaskets	`90430-08003-00`^6,11,8,57replaces 90430-08020-00	—	Two per gear oil change: under the drain screw (688-45341-10-00) and under the level screw (90340-08002-00).
Propeller nut	`90171-16011-00`^{53,58,59,60,29,56}	—	Castle nut, all models: tighten to 34 N·m (35 N·m for the 8-valve engines in the 2013 manual), turn on to the next slot and lock it with a new cotter pin. One source (Yamaha catalogues at one dealer).
Propeller hardware kit	`91490-30025-00`^{53,58,59,61,29}	—	Propeller cotter pin; never reuse it. In the 2005–2025 F50/F60 and 2018–2025 F70/T50/T60 catalogues; the 2007 FT50G, 2008 FT60D and 2011 F70A catalogues list 91490-40025-00, now 91490-40030-00. One source (Yamaha catalogues at one dealer).
Propeller hardware kit	`663-45987-02-00` · `66T-45997-00-00`^53,61,62,63	—	Propeller spacers for the F50 and F60 (propeller mark G): thrust spacer 663-45987-02-00 and rear spacer 66T-45997-00-00, listed with the castle nut and cotter pin in the 2005–2025 catalogues. The F70 and T models use the parts in the next row. One source (Yamaha catalogues at one dealer).
Propeller hardware kit	`67F-45576-00-00` · `688-45987-01-00` · `67F-45997-00-00`^2,58,3,59,64	—	Propeller thrust washer and spacers for the F70, T50 and T60 (propeller mark K): thrust washer 67F-45576-00-00 on the propeller shaft, plus spacers 688-45987-01-00 and 67F-45997-00-00 listed with the castle nut (2007–2025 catalogues). One source (Yamaha catalogues at one dealer).

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

Task	Interval
Engine oil change	First after 20 h or 3 months, then every 100 h or yearly²⁹
Oil filter	Every 100 h or yearly²⁹
Gear oil change	First after 20 h or 3 months, then every 100 h or yearly²⁹
Spark plug	Check or replace every 100 h or yearly²⁹
Fuel filter	Check at 20 h, then every 100 h or yearly; replace as needed²⁹
Fuel pump	Check every 300 h or 3 years (dealer)²⁹
Raw water impeller	Impeller and pump housing: check every 100 h or yearly, replace every 300 h or 3 years (dealer)²⁹
Thermostat	Check every 100 h or yearly, replace as needed (dealer)²⁹
Timing belt	Check every 100 h or yearly; replace at 1000 h (dealer)²⁹
Anode	Outer anodes: check every 100 h or yearly; internal anodes in the cylinder head and thermostat cover: check every 100 h (dealer); anodes in the exhaust cover, cooling-water passage cover and rectifier/regulator cover: replace every 500 h or 5 years (dealer)²⁹
Valve clearance	Check and adjust every 500 h or 5 years (dealer)²⁹
Lubrication	At 20 h, then every 100 h or yearly: Yamalube grease A (water-resistant) on the greasing points, Yamaha grease D (corrosion-resistant) on the propeller shaft²⁹
Propeller	Propeller, nut and cotter pin: check at 20 h, then every 100 h or yearly²⁹
Throttle body	Check and clean every 100 h or yearly (new in the chart of the 2026 edition)²⁹
Exhaust	Exhaust guide and exhaust manifold: check every 1000 h²⁹

Hours or months, whichever comes first, from Yamaha Europe’s owner’s manual 6C1-28199-7R-E0 (December 2025); the 2013 edition, 6C1-28199-7B, gives the same intervals but does not yet list the throttle body. The chart assumes about 100 h of use a year and regular flushing; “dealer” marks the jobs Yamaha leaves to its dealers. Under severe use (long trolling, long runs at full throttle, no time to warm up, frequent starts, shifting or changing loads) Yamaha asks for every service twice as often.

Specifications

Type	Four-stroke, SOHC with toothed-belt drive, electronic fuel injection, electric start²⁹
Cylinders	4 in line; 8 valves (F50, F60, T50, T60) or 16 valves (F70)²⁹
Displacement	996 cc (60.8 cu in)²⁹
Bore × stroke	65.0 × 75.0 mm²⁹
Compression ratio	F50, F60: 9.5:1; F70: 9.4:1 (Yamaha US)³¹
Power	F50, T50: 36.8 kW (50 hp); F60, T60: 44.1 kW (60 hp); F70: 51.5 kW (70 hp)²⁹
Full-throttle range	F50, F60, T50, T60: 5000–6000 rpm; F70: 5300–6300 rpm²⁹
Idle speed	700–800 rpm in neutral²⁹
Ignition	TCI²⁹
Cooling	Raw water with thermostat; impeller pump on the drive shaft; fresh-water flushing connection²⁹
Engine oil capacity	2.1 l with filter change, 1.9 l without; wet sump²⁹
Engine oil grade	Yamalube 4 (US: Yamalube 4M) or another four-stroke outboard oil, SAE 10W-30, 10W-40 or 5W-30, API SE to SL^29,31
Gearbox	Forward, neutral, reverse. F50, F60: 1.85:1 (24/13), propeller mark G; F70, T50, T60: 2.33:1 (28/12), propeller mark K²⁹
Gear oil capacity	F50, F60: 0.430 l; F70, T50, T60: 0.670 l²⁹
Gear oil grade	Yamalube outboard gear oil or hypoid gear oil SAE 90, API GL-4²⁹
Spark plug	F50, F60, T50, T60: NGK DPR6EB-9; F70: NGK LKR7E; 4 per engine²⁹
Spark plug gap	0.8–0.9 mm²⁹
Valve clearance (cold)	Intake 0.15–0.25 mm, exhaust 0.25–0.35 mm²⁹
Tightening torques	Spark plugs 17 N·m (2013 edition: 18 N·m on the 8-valve engines); oil drain screw 27 N·m (2013 edition: 28 N·m on the 8-valve engines); oil filter 18 N·m; gear oil drain and level screws 7 N·m (given only in the 2026 edition); propeller nut 34 N·m (2013 edition: 35 N·m on the 8-valve engines)^29,56
Alternator	Maximum output 16 A (F50, F60, T50, T60) or 15 A (F70)²⁹
Battery	430–1080 A CCA (EN), 70 Ah (20 h, IEC)²⁹
Fuel	Regular unleaded petrol, at least RON 90 (Yamaha US: 87 octane, max. 10 % ethanol); fuel filter with water separator on the engine, plus an external water-separating filter (10 micron) recommended^29,31
Shaft length	L 20 in (transom height 527–534 mm); X 25 in, F70 and T60 only (644–648 mm)²⁹
Dry weight	With aluminium propeller, L shaft. 2026 edition: F50 with hydro tilt 111 kg, F50 and F60 114 kg, T50 and T60 119 kg, F70 120 kg. 2013 edition: F50HED 107 kg, F50H and F60F 113 kg, FT50J and FT60G 118 kg, F70A 119 kg^29,56
Models	Model code on the serial label: 6C1 = F50, 6C2 = T50/FT50, 6C5 = F60, 6C6 = T60/FT60, 6CJ = F70. European names by manual edition: F50F, F60C, FT50G, FT60D (from 2005) and F70A (from 2010); F50H, FT50J, F60F, FT60G, F70A (2013–2024); F50L, FT50N, F60H, FT60J, F70B (November 2024); F50, T50, F60, T60, F70 (December 2025). Australian and US engines carry names such as F60LB, F70LA, T50LB and T60LB^{65,66,56,67,29,6,11,16,17}
Years built	Since 2005 (F50, F60, T50, T60; first F50 serial 6C1-1000001); F70 since 2010; still in production in 2026^66,29

Good to know

Order by gearcase, not just by horsepower: the F50 and F60 share the small 1.85:1 gearcase (propeller mark G, 0.43 l of gear oil, pump kit 63D-W0078-03-00), while the F70 and the T50/T60 High Thrust use the larger 2.33:1 gearcase (mark K, 0.67 l) with their own kits, 6CJ-W0078-01-00 for the F70 and 6H3-W0078-02-00 for the T models. The impeller, 6H3-44352-00-00, is the same in all of them.^6,11,16,29
The timing belt is the item owners forget: Yamaha wants it checked at every annual service and replaced at 1000 h. Look for cracks, glazing, missing teeth and oil on the belt; one belt, 6C5-46241-00-00, fits every engine of this family since 2005.^29,41,42
For an oil change, run the engine for 5–10 minutes, let it settle, then pump the oil out through the dipstick tube or drain it, with a new gasket 90430-14M09-00 on the drain screw. It takes 2.1 l with a new filter (5GH-13440-90-00 or Sierra 18-8700) and 1.9 l without; read the dipstick with the motor upright, not tilted.^29,6,20
Gear oil goes in from the bottom: fill through the drain hole until oil comes out of the level hole, then refit both screws with new gaskets 90430-08003-00 (7 N·m). Milky oil or a hairy magnet on the drain screw means water or wear in the gearcase, so have it checked before the season.^29,6
Check the clear fuel filter cup before every trip. If enough water has collected to lift the float ring, empty it and have the tank checked; the element (6D8-WS24A-00-00 on engines from about 2006) is cheap enough to carry a spare. Yamaha US also recommends an extra water-separating filter (10 micron) between tank and engine.^29,31,6
The internal anodes are easy to miss: there are five in the block of the F50, F60, T50 and T60 (four in the cylinder head plus one under the cover next to the thermostat) and four on the F70. In salt water have them checked every year, and flush the engine with fresh water after every use.^6,11,29
