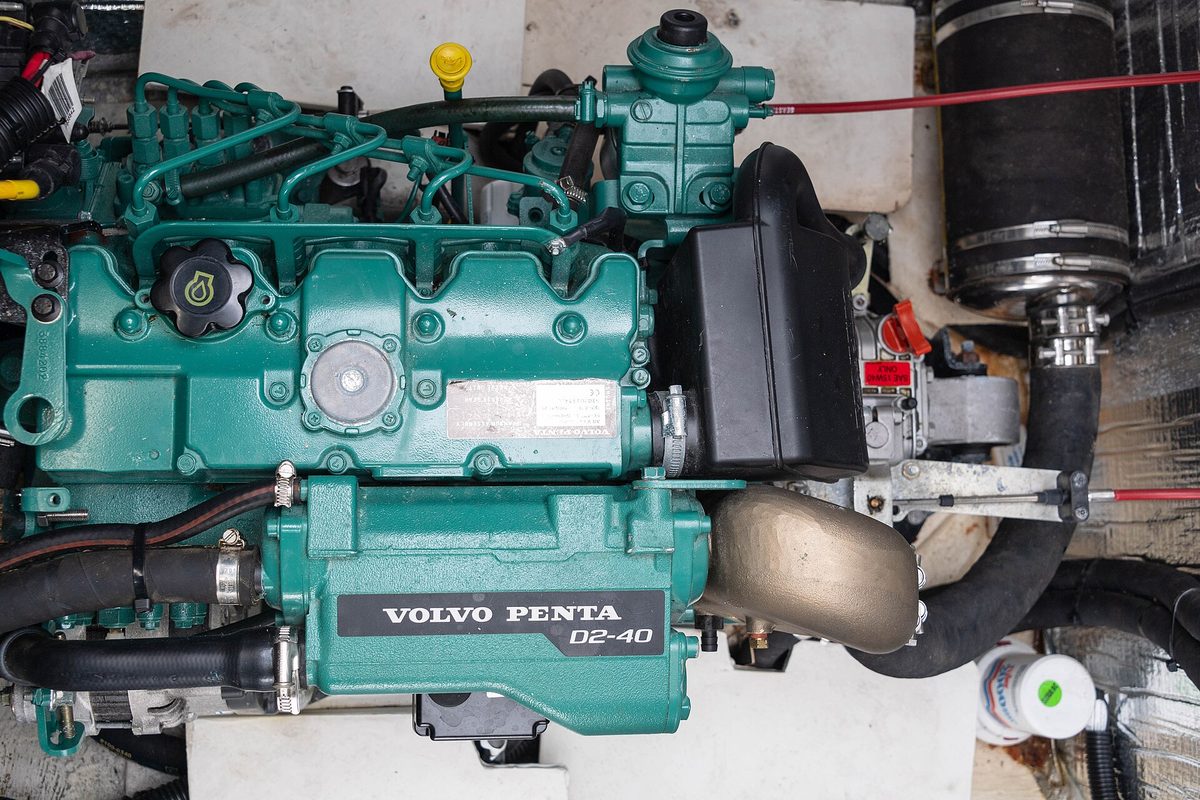

Volvo Penta D2-40

The D2-40 is the four-cylinder, 1.51-litre member of Volvo Penta’s D1/D2 sailboat range — essentially a D1-30 with one more cylinder (same 77 × 81 mm bore and stroke). It comes with an MS15 reverse gear or a 130S/130SR saildrive, has a 115 A alternator and freshwater cooling through a tubular heat exchanger. Versions A, B and F share the same service parts. Not to be confused with the larger D2-50 to D2-75, which share its oil and fuel filters but use a different impeller.

Manuals & documents
Wear parts & part numbers
Service intervals
Specifications
Good to know
Videos & how-tos
Fitted in
On the marketplace

Manuals & documents

The links go straight to Volvo Penta. We host no manuals or drawings — the manufacturer’s copy is the current one.

Operator’s manual D1-13, D1-20, D1-30, D2-40 (A version) Operation manual pubs.volvopenta.com · PDF · EN
Operator’s manual D1-13B, D1-20B, D1-30B, D2-40B Operation manual pubs.volvopenta.com · PDF · EN
Operator’s manual D1/D2 F versions (2021) Operation manual pubs.volvopenta.com · PDF · EN
Service and Maintenance D1, D2 Service manual pubs.volvopenta.com · PDF · EN
Service protocol D1/D2, 130S/150S drives, MS10/MS15/MS25 gears Service protocol pubs.volvopenta.com · PDF · EN
Product leaflet D2-40 (technical data) Product leaflet pubs.volvopenta.com · PDF · EN
Volvo Penta manuals & handbooks: D2-40 (all publications, also B/F) Manual portal volvopenta.com · EN
Volvo Penta parts catalogue, filtered to D2-40 Parts catalogue volvopenta.com · EN
Parts catalogue: D2-40 repair and service kits Parts catalogue volvopenta.com · EN

Wear parts & part numbers

Part	OEM number	Also fits	Note
Impeller kit (with gasket)	`22222936`^3,4,5replaces 3593659	Jabsco `18673-0001`^1,2	All versions; the same kit as the D1-30 and MD2010–2040 — but not the D2-50 to D2-75, which take another impeller. Beware of kit 21951346, often sold as the ‘D2-40 impeller’: per Volvo’s own list it does not fit.
Pump cover gasket	`840385`^3,6	—	Fit a new one whenever the cover comes off.
Raw water pump	`3593655`^3,7	—
Engine oil filter	`3840525`^5,8	—	Same filter on D1-30, MD2030/MD2040 and D2-55 to D2-75.
Fuel filter (engine)	`861477`^9,10,5	—	Engine-mounted spin-on fine filter.
Fuel pre-filter	`3581078` · `861014`^11,12	—	3581078 for the 877766/877767 water separator, 861014 (10 µm) for the 877762 housing — only if a Volvo Penta pre-filter is fitted; many boats have another make. Some dealer ‘service kits’ call 3581078 a fuel filter; it is the pre-filter element, not the engine-mounted filter.
Alternator V-belt	`3812145`^13,14,5	—	D2-40 belt; the D1-30 uses 21951188. Not sold online — dealer order.
Thermostat	`3842015`^15,16	—	Same as D1-30; the catalogue also lists a thermostat kit 3887340 for the D2-40 (contents not shown).
Air filter	`3809924`¹⁷	—	A complete, non-serviceable filter unit — the whole unit is replaced.
Service kit	`21189422`^18,5	—	Fits D2-40 and D1-30, all versions; the catalogue does not list the contents.
Onboard spares kit	`3884554`¹⁹	—	Dealer order only; contents not listed online.
Engine oil	`23909459`²⁰	—	VDS-4.5 SAE 15W-40, 1 l; the 5 l can is 23909460. Current Volvo documents also use it for the MS15 gear and the 130S saildrive.
Coolant	`22567295`²⁰	—	VCS yellow concentrate, 5 l; ready-mixed 5 l is 22567314. Only for engines already on VCS yellow.
Propeller shaft grease	`828250`²⁰	—	25 g tube.

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

Task	Interval
First service	Oil and filter after the first 20–50 h on a new or rebuilt engine²¹
Engine oil change	Every 500 h or yearly (operator’s manuals); 2016 service protocol: every 400 h or yearly^21,22
Oil filter	With every oil change²²
Fuel filter	Fine filter and pre-filter element every 400 h or yearly (2016 protocol; 2007 manuals: 500 h); drain water from the pre-filter regularly^22,21
Raw water impeller	Inspect every 200 h or yearly; replace every 400 h or every 2 years²²
V-belt check	Inspect every 200 h or yearly; replace every 600 h or every 4 years²²
Sea water strainer	Clean every 14 days²¹
Air filter	Replace every 400 h or every 2 years (2007 manuals: 500 h)²²
Valve clearance	Check every 600 h or every 4 years (2007 manuals: 500 h or 2 years) — workshop²²
Coolant change	Replace every 2,000 h or every 4 years (2007 manuals: 500 h or 2 years)²²
Gearbox oil change	Reverse gear or saildrive: every 200 h or yearly²²
Anode	Inspect every 200 h or yearly; replace at 50 % wear or at least once a season²¹
Exhaust hose	Inspect every 200 h or yearly; replace every 600 h or every 4 years²²
Saildrive diaphragm	Inspect yearly, replace every 7 years²²

Hours or time, whichever comes first. The 2016 service protocol is the reference; where the 2007 operator’s manuals differ, it says so.

Specifications

Cylinders	4, in-line²³
Displacement	1.51 l (77 × 81 mm)²³
Compression ratio	23.5:1²³
Power	29.1 kW (39.6 hp) crankshaft, 27.9 kW (38.0 hp) propeller shaft — operator’s manuals; 2017 leaflet: 27 kW (37 hp) / 26 kW (36 hp)^23,24
Rated speed	2,800–3,200 rpm at full load; idle 850 ± 25 rpm²³
Engine oil capacity	6.5 l²³
Engine oil grade	SAE 15W-40 or 20W-50; VDS-4 / VDS-4.5 (2021 manual), VDS-3 or VDS-2 + ACEA E7 / API CH-4 / CI-4 (2007 manuals)²³
Coolant capacity	approx. 6.4 l^23,20
Coolant	Volvo Penta VCS (yellow); older engines run green coolant — never mix the two²⁰
Thermostat opens at	90 ± 2 °C, fully open at 102 °C²³
Alternator	14 V / 115 A²³
Starter motor	approx. 2.0 kW; 12 V, 70 Ah starter battery²³
Dry weight	148 kg engine only; 178 kg with MS15A, 177 kg with MS15L, 189 kg with 130S saildrive^23,24
Gearbox	MS15A (8° down) or MS15L (straight) reverse gear, 2.14:1 or 2.63:1; or 130S/130SR saildrive, 2.19:1²⁴
Gearbox oil	MS15 0.56 l; 130S-B 2.9 l; 130S-C 3.3 l. SAE 15W-40 engine oil per the 2021 manual — the 2007 manuals specified ATF Dexron II/III^23,20
Emissions	BSO, EU RCD Stage II, US EPA Tier 3²⁴

Good to know

Lubricate a new impeller with glycerine only — other lubricants damage it — push it in with a clockwise twist and fit a new cover gasket. Volvo Penta says to always carry a spare impeller.²³
Check belt tension with the engine warm: the belt should give about 3–4 mm between the pulleys.²⁰
Volvo changed the oil for the MS15 gearbox and the 130S saildrive from ATF (2007 manuals) to SAE 15W-40 engine oil (2021 manual). Find out what is already in yours before topping up.²³
Never mix the older green Volvo coolant with the newer VCS yellow — check which one the engine has before topping up.²⁰
Saildrive and propeller anodes: zinc for salt water, magnesium for fresh water; replace at 50 % wear or at least once a season, never paint them.²¹

Videos & how-tos

Links to YouTube, nothing embedded. The maker’s own channel comes first; the rest are channels we found clear and correct for this model.

Taking apart and cleaning the heat exchanger of a D2-40 Video Sail Life · EN · 24 min
Oil change on a D2-40 Video Sailing SV Apogee · EN · 5 min

Fitted in

Boats whose builder lists it as standard or optional equipment:

Leopard 46 — Volvo Penta D2-40 × 2 (Private boats of the first production: builder’s equipment list of June 2006 and model page of September 2006, 40 hp each)
Bavaria 37 Cruiser — Volvo Penta D2-40 (Europe: option instead of the D1-30, 30 kW / 40 hp as printed by Bavaria · US boats (Bavaria Yachts USA, 2006–2008): standard, 40 hp, with saildrive)
Bavaria 40 Cruiser — Volvo Penta D2-40 (Europe: option on both boats, 27.9 kW / 38 hp with saildrive · US: standard on the 40 Cruiser (Bavaria Yachts USA, 2008), 40 hp)
Dehler 38 — Volvo Penta D2-40 (Option: the test boats of YACHT and Yachtrevue in 2013 had the D2-40 with 38 hp and a 2-blade folding propeller, an Italian test of June 2013 and Skipper ONDECK (04/2014) list it as an option · configurators of October 2019 and August 2020: ‘diesel approx. 39 hp’ with saildrive and a 2- or 3-blade folding propeller, make not named)
Hanse 385 — Volvo Penta D2-40 (Option: 27.9 kW / 38 hp with the 130S saildrive and a 2-blade fixed or folding propeller (option list of 2015); the brochure of January 2017 gives 29.7 kW / 38.0 hp and pairs it with a 2-blade folding propeller)
Hanse 415 — Volvo Penta D2-40 (Standard in the list of 1 July 2014: 27.9 kW / 38 hp, saildrive, 2-blade fixed propeller · the list of 1 July 2016 keeps the same rating but writes only ‘Diesel’; the sail plans print 29.5 kW / 40 hp)
