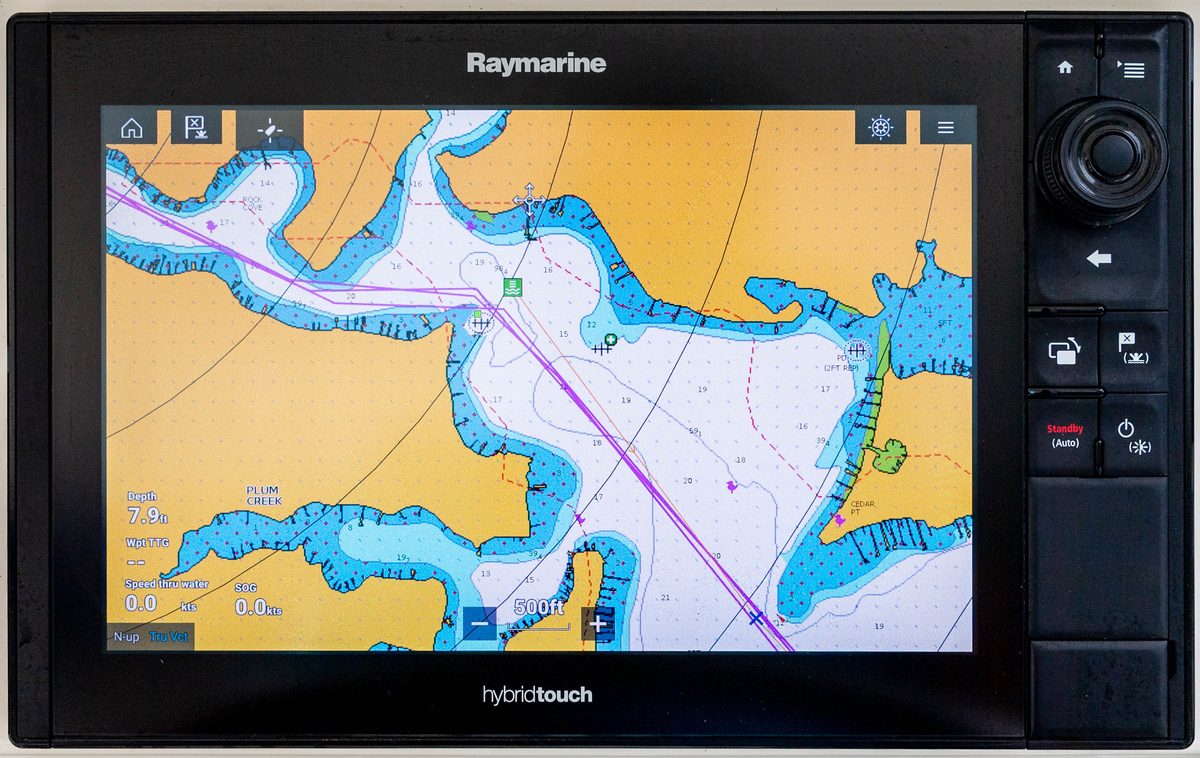

Raymarine Axiom – Chartplotter
Photo: Craig Stanfill, CC BY-SA 2.0, via Flickr

Raymarine · Chartplotter

Raymarine Axiom

Axiom is Raymarine’s range of touchscreen chartplotters (multifunction displays) running the LightHouse operating system, sold since 2017 in sizes from 7 to 24 in. The 7, 9 and 12 in displays keep one housing across three generations, Axiom (2017), Axiom+ (2020) and Axiom 2 (2026), and come either chart-only or as RV versions with RealVision 3D sonar built in. Axiom Pro (2017) and Axiom 2 Pro (2023) add a keypad, a 12/24 V supply and stronger sonar; Axiom XL (2018) and Axiom 2 XL (2023) are 16 to 24 in helm screens without sonar. Every model runs LightHouse 4, while LightHouse 5 (2026) is for the Axiom 2 generation only.

Manuals & documents

The links go straight to Raymarine. We host no manuals or drawings — the manufacturer’s copy is the current one.

Wear parts & part numbers

PartOEM numberAlso fitsNote
Power cableR70523 · R705611,2,3—Axiom, Axiom+ and Axiom 2 (7, 9 and 12 in): combined power and NMEA 2000 cable, a 1.5 m bare-ended power tail plus a 0.5 m DeviceNet (male) tail. R70523 has a straight plug, R70561 a right-angled plug for tight spaces behind the display.
Power cableR62379 · R70029 · A80744 · A807454,5,6,7—Pro and XL displays, 1.5 m power and video cable: R62379 straight and R70029 right-angled for Axiom Pro and Axiom XL (these also carry NMEA 0183; the XL ships with R70029). Axiom 2 Pro and Axiom 2 XL take different cables: A80744 straight and A80745 right-angled (power, video, audio).
Sun coverR70525 · R70527 · R70530 · R70533 · A80499 · A80501 · A805031,2,3,8—Axiom, Axiom+ and Axiom 2 share their covers. 7 in: R70525 on the trunnion bracket (the one in the box), R70527 for surface mounting; 9 in: R70530; 12 in: R70533 (both for trunnion mounting). With a front installation kit: A80499 (7 in), A80501 (9 in), A80503 (12 in).
Mounting bracketR70524 · R70529 · R705321,2,3—Metal trunnion kit (bracket and two knobs), the same for Axiom, Axiom+ and Axiom 2: R70524 (7 in), R70529 (9 in), R70532 (12 in). For the 7 in there is also a rear cover for trunnion and rear mounting, R70526.
Fastening kitR70528 · R70531 · R705341,2,3—Rear mounting kit for panel mounting (2 metal brackets, 4 studs, 4 thumb nuts): R70528 (7 in), R70531 (9 in), R70534 (12 in); Axiom, Axiom+ and Axiom 2.
Fastening kitA80498 · A80500 · A805021,2,3,9—Front installation kit for panels with no access from behind (front-mount adaptor, two bezel pieces, four screws, front-mount sun cover): A80498 (7 in), A80500 (9 in), A80502 (12 in); Axiom, Axiom+ and Axiom 2. The microSD slot can then only be reached by taking the display out.
Adaptor plateA80524 · A80525 · A80526 · A80564 · A80527 · A80528 · A805291,2,3,8—Adaptor plates that put an Axiom, Axiom+ or Axiom 2 into an old plotter’s cut-out: A80524 e7/e7D → 7 in; A80525 C70 Classic → 9 in (new fixing holes); A80526 a9x → 9 in; A80564 C80/E80 Classic → 9 in; A80527 a12x → 12 in (new fixing holes); A80528 c12x/e12x → 12 in; A80529 C120/E120 Classic → 12 in. Where not noted, the old fixing holes are re-used.
Sun coverA80534 · A80535 · A80536 · A80741 · A80742 · A807434,6—Each Pro generation has its own covers. Axiom Pro: A80534 (9 in), A80535 (12 in), A80536 (16 in). Axiom 2 Pro: A80741 (9 in), A80742 (12 in), A80743 (16 in).
Mounting bracketR70384 · R70389 · A807224,6—Pro trunnion kits: R70384 (9 in) and R70389 (12 in) fit both Axiom Pro and Axiom 2 Pro; A80722 is for the Axiom 2 Pro 16, which ships without a bracket. Raymarine lists no trunnion kit for the Axiom Pro 16.
Adaptor plateA80530 · A80531 · A80533 · A805654,6—Adaptor plates for Axiom Pro and Axiom 2 Pro in an old cut-out: A80530 C90W/E90W → 9 in; A80531 C120W/E120W → 12 in; A80533 C140W/E140W/e165 → 16 in; A80565 C120/E120 Classic → 12 in.
BezelR70383 · R70387 · R705984,6—Axiom Pro trim kit (replacement bezel pieces): R70383 (9 in), R70387 (12 in), R70598 (16 in). Other Axiom Pro spare: keypad assembly R70600. Axiom 2 Pro spares: lower keypads R70888, card-reader door R70891, keypad infills for the 12 and 16 in R70892, left-hand bungs R70893.
Seal setR70385 · R70388 · R705994—Axiom Pro mounting seal kit: R70385 (9 in), R70388 (12 in), R70599 (16 in).
Sun coverR70665 · R70666 · R70676 · R70667 · A80733 · A80734 · A80735 · A807365,7—Axiom XL: R70665 (16 in, silicone), R70666 (19 in), R70676 (22 in), R70667 (24 in). Axiom 2 XL: A80733 (16 in), A80734 (19 in), A80735 (22 in), A80736 (24 in).
Fastening kitR70668 · R70669 · R70675 · R706705,7—Rear mounting kit (2 bars, 4 feet, M5 screws and nuts, panel gasket), the same for Axiom XL and Axiom 2 XL: R70668 (16 in), R70669 (19 in), R70675 (22 in), R70670 (24 in).
CableA80235 · A80219 · A80578 · A80579 · A807235,7,6,1,2,4—Video and touch cables for Axiom XL and Axiom 2 XL: A80235 alarm and analog video cable 2 m (also needed for the external alarm buzzer E26033), A80219 HDMI cable 5 m, A80578 touch-in and A80579 touch-out USB cable 5 m. Axiom 2 Pro: A80723 micro-HDMI cable 5 m. An XL has no card slot and its GNSS receiver needs an external antenna: the accessory pack T70431 bundles antenna, buzzer, RCR-SDUSB card reader (A80440) and the alarm/video cable. Single items: GA200 antenna A80589 (older GA150 A80288), RCR-1 microSD reader A80585.
TransducerA804641,2,3,4,6,10—RV-100 RealVision 3D transom transducer (plastic, 8 m cable). Plugs straight into the 25-pin socket of Axiom RV, Axiom+ RV, Axiom 2 RV and Axiom Pro RVX, and also works on the Axiom 2 Pro RVM. Not for chart-only, DV or S models.
TransducerA807036,11—RVM-100 RealVision MAX transom transducer, for the Axiom 2 Pro RVM (and the RVM1600 sonar module). Not listed for Axiom, Axiom+ or Axiom 2 RV.
TransducerE70342 · A806911,4,6—CPT-S CHIRP transducers without DownVision: E70342 for the transom, A80691 in-hull (no hole through the hull). Direct on the Axiom 7 DV; through the A80490 adaptor on all RV, RVX and RVM models and on the Axiom Pro S and Axiom 2 Pro S.
TransducerA803511,4replaces A80270—CPT-100DVS DownVision transom transducer, successor to the CPT-100 (A80270). Direct on the Axiom 7 DV; through the A80490 adaptor on RV and RVX models.
CableA80490 · A80489 · A80485 · A805151,2,3,4,6—Transducer adaptor cables: A80490 from the 25-pin RV socket to 9-pin DownVision transducers (CPT-100DVS, CPT-110, CPT-S; on the Axiom 2 Pro S every CPT-S needs it); A80489 from the RV socket to older CP370-type transducers such as P79, B60, B117 or SS164; A80485 the same from the 9-pin socket of the Axiom 7 DV; A80515 right-angled RV adaptor that saves depth behind the display.
CableA80475 · A80476 · A80477 · A80478 · A802731,6,2—Transducer extensions: A80475 (3 m), A80476 (5 m) and A80477 (8 m) for RealVision and RealVision MAX transducers; A80478 Y-cable that joins the two halves of a split-pair thru-hull RealVision transducer (extend a split pair with equal lengths). A80273 extends DownVision and CPT-S transducers by 4 m; Raymarine advises using only one extension.
Network cableA80161 · A62361 · A80005 · A62362 · A80512 · A8000612,4,5,6,13,1,14—RayNet to RayNet cables (female both ends) for every Axiom: A80161 0.4 m, A62361 2 m (in the box of Axiom Pro, Axiom XL and Axiom 2 Pro), A80005 5 m, A62362 10 m, A80512 10 m with one right-angled plug, A80006 20 m. To join radar, sonar module, camera or a second display to an Axiom with one RayNet port, Raymarine uses the RNS-5 gigabit switch (A80731). Cable puller tool (5-pack): R70014.
Network cableA62360 · A80151 · A8015915—RayNet (female) to RJ45 (male) cables for IP cameras, third-party routers and older RJ45-type Raymarine units: A62360 1 m, A80151 3 m, A80159 10 m.
Network connector (T-piece, terminator)A80160 · A80513 · A80247 · A8026216,17,18,19—RayNet adaptors: A80160 RayNet to SeaTalkhs (0.4 m) for older SeaTalkhs cables and units; A80513 RayNet to RJ45 plug (100 mm); A80247 RayNet to waterproof RJ45 socket (100 mm); A80262 right-angle RayNet adaptor where a straight plug does not fit.
Network connector (T-piece, terminator)A06075 · A06045 · T701341,6—SeaTalkng / NMEA 2000: A06075 SeaTalkng to DeviceNet (female) adaptor cable 1 m (0.4 m: A06045) joins the DeviceNet plug of the Axiom 7/9/12 power cable to a SeaTalkng backbone. The T70134 starter kit (3 m spur, 2 m power cable, 2 terminators, 5-way block) builds a simple backbone, which needs its own 12 V feed with a 5 A fuse.
Data converter / gatewayE22158 · A807211,8,2,6,7—Converters for older data networks: the E22158 SeaTalk 1 to SeaTalkng kit (converter, power cable, spur, A22164 SeaTalk adaptor, blanking plugs, terminators) keeps SeaTalk 1 instruments and autopilots on an Axiom system. A80721 (Actisense NGW-1) adds NMEA 0183 to Axiom, Axiom+, Axiom 2, Axiom 2 Pro and Axiom 2 XL, which have no 0183 port; Axiom Pro and Axiom XL carry 0183 on their power cable.
Chart cardR70794-WEU · R70794-MED · R70794-NEU · R70794-CAR · R70794 · R70794-AUS20,21,22,23,24,25,26—LightHouse Charts on preloaded microSD: R70794-WEU Western Europe, R70794-MED Mediterranean, R70794-NEU Northern Europe, R70794-CAR Caribbean & Brazil, R70794 North America, R70794-AUS Australia & New Zealand. Raymarine’s regional pages list Axiom, Axiom+, Axiom Pro and Axiom XL; the Axiom 2 models appear on some regions only. Axiom displays also read Navionics and C-MAP cards.

Numbers checked against the sources below on 12 October 2026. Always confirm against your serial number and exact type before ordering.

Service intervals

TaskInterval
Software updateCheck regularly; from LH4 v4.10.149 the display looks for updates itself at start-up when online. Before updating: back up, put autopilot and radar in Standby, keep the power steady and do not interrupt. All networked displays must run the same version. Update from microSD (unzip the download first) or online in the settings menu; an original Axiom 7/9/12 needs a blank microSD of at least 4 GB in the slot even for an online update, never a chart card26
Software updateBack up regularly and before every update: save waypoints, routes and tracks (.gpx) and the settings (.lh3) to a microSD card through My data > Import/export; the files land in the Raymarine\My Data folder. Restore with Import from card (a settings restore reboots the display). Digital-switching dashboard pages are not included26
Fresh-water washFit the sun cover whenever the display is not in use (take it off at speed or when towing). Clean with the power off: rinse the screen and the sun cover’s tacky inner face with fresh water, let them dry, then wipe gently with a microfibre cloth. No solvents, ammonia, abrasives or pressure washer1
Electrical connectionsRegularly (Raymarine gives no hours or months): inspect all cables for damage and wear and check that every plug is tight. The display has no user-serviceable parts1

From Raymarine’s Axiom installation instructions 87298 and the LightHouse 4 operation instructions 81406. Raymarine sets no maintenance schedule in hours or months for Axiom displays.

Specifications

ModelsAxiom 7/9/12 (2017): 7 E70363, 7 DV E70364, 7 RV E70365, 9 E70366, 9 RV E70367, 12 E70368, 12 RV E70369 (suffixes -01 to -03 are packs with a transducer) · Axiom+ (2020): 7 E70634, 9 E70636, 12 E70638, RV E70635/E70637/E70639 · Axiom 2 (2026): 7 E70720, 9 E70722, 12 E70724, RV E70721/E70723/E70725. DV = DownVision and CHIRP sonar (9-pin socket); RV = RealVision 3D, SideVision, DownVision and High CHIRP (25-pin socket); the others are chart-only1,2,3
ModelsAxiom Pro (from November 2017): RVX 9/12/16 E70371/E70372/E70373, S 9/12/16 E70481/E70482/E70483 · Axiom 2 Pro (2023): S 9/12/16 E70653/E70655/E70657, RVM 9/12/16 E70654/E70656/E70658. RVX = RealVision 3D (25-pin) plus 1 kW CHIRP (11-pin); RVM = RealVision MAX 3D plus 1 kW CHIRP; S = CHIRP sonar only (200 W on the Axiom Pro S, 100 W on the Axiom 2 Pro S)4,6,27
ModelsAxiom XL (2018): 16 E70399, 19 E70400, 22 E70515, 24 E70401 · Axiom 2 XL (2023): 16/19/22/24 E70661–E70664, as kits with buzzer, card reader and alarm/video cable T70545–T70548. No sonar inside5,7
Years builtAxiom 7/9/12 2017 · Axiom Pro from November 2017 · Axiom XL 2018 · Axiom+ from June 2020 · Axiom 2 Pro January 2023 · Axiom 2 XL May 2023 · Axiom 2 7/9/12 2026. Current in 2026: Axiom+, Axiom 2, Axiom 2 Pro, Axiom 2 XL27,28,29,30,31,3,32
DisplayAxiom, Axiom+, Axiom 2: 7, 9 and 12.1 in touchscreen. Axiom: TN panel on the 7 and 9 in, IPS on the 12.1 in, 1200 nits. Axiom+ and Axiom 2: IPS with HydroTough coating, 1500 nits (7 and 9 in), 1800 nits (12.1 in)1,2,3
DisplayAxiom Pro, Axiom 2 Pro: 9, 12.1 and 15.6 in IPS, touchscreen plus keypad with rotary controller. Axiom Pro 1200 nits; Axiom 2 Pro with HydroTough coating and HybridTouch, 1300 nits (9 in) and 1200 nits (12.1 and 15.6 in)4,6
DisplayAxiom XL, Axiom 2 XL: 15.6, 18.5, 21.5 and 24 in IPS, touch only. Axiom XL 1200–1500 nits; Axiom 2 XL with HydroTough coating, 1200–1300 nits5,7
Resolution7 in: 800 × 480 (Axiom), 1024 × 600 (Axiom+, Axiom 2) · 9 in: 800 × 480 (Axiom), 1280 × 720 (Axiom+, Axiom 2, Axiom Pro, Axiom 2 Pro) · 12.1 in: 1280 × 800 (all) · 15.6, 18.5 and 21.5 in: 1920 × 1080 · 24 in: 1920 × 12001,2,3,4,6,5,7
TypeTouchscreen multifunction display. Processor and memory: Axiom quad-core, 4 GB, 1 microSD slot · Axiom+ quad-core, 16 GB, 1 microSD · Axiom 2 six-core, 64 GB, 1 microSD · Axiom Pro 16 GB (14 GB usable), 2 microSD · Axiom 2 Pro six-core, 64 GB, 2 microSD · Axiom XL 64 GB and Axiom 2 XL six-core, 64 GB, both without a card slot (remote card reader). Cards: microSD (SDSC, SDHC, SDXC) in FAT32, exFAT or NTFS, class 10 or UHS recommended1,2,3,4,6,5,7,26
VoltageAxiom, Axiom+, Axiom 2: 12 V DC (8–16 V), 7 A fuse · Axiom Pro, Axiom 2 Pro, Axiom XL, Axiom 2 XL: 12/24 V DC (8–32 V), 15 A fuse1,3,4,6,5,7
Power consumptionAxiom and Axiom+ (max): 7 in 7.3 W (7 DV 10.0 W, 7 RV 9.8 W), 9 in 9.0 W (RV 12.0 W), 12 in 15.5 W (RV 19.0 W) · Axiom 2 (typical): 7 in 16.6 W (RV 19.2 W), 9 in 17.6 W (RV 19.9 W), 12 in 20.6 W (RV 20.9 W)1,2,3
Power consumptionMax at 12 V: Axiom Pro RVX 9/12/16 33.1/29.9/42.4 W, Axiom Pro S 25.0/21.1/31.7 W · Axiom 2 Pro RVM 44.4/37.2/50.8 W, Axiom 2 Pro S 31.2/24.6/38.4 W4,6
Power consumptionMax at 12 V: Axiom XL 16/19/22/24 77.9/87.5/97.3/93.6 W · Axiom 2 XL 76.6/85.4/94.3/92.5 W5,7
Waterproof ratingAxiom, Axiom+, Axiom 2: IPx6 · Axiom Pro, Axiom 2 Pro, Axiom XL, Axiom 2 XL: IPx6 and IPx7. Raymarine advises shading an Axiom XL 24 from direct sun when it is mounted above deck1,3,4,6,5,7
Data connectionsAxiom and Axiom+: 1 RayNet (10/100 Mbit/s), NMEA 2000 through the DeviceNet tail of the power cable, Wi-Fi, Bluetooth, micro-USB accessory port, built-in 10 Hz GNSS receiver · Axiom 2: 1 RayNet gigabit, NMEA 2000, Wi-Fi, Bluetooth. None of them has NMEA 01831,2,3
Data connectionsAxiom Pro: 1 RayNet gigabit, NMEA 2000, 2 NMEA 0183 and analog video on the power cable, TNC socket for an external GNSS antenna, Wi-Fi, Bluetooth · Axiom 2 Pro: 2 RayNet gigabit, NMEA 2000 (NMEA 0183 only through the A80721 converter), micro-HDMI out, analog video in, audio out, TNC GNSS antenna socket, dual-band Wi-Fi, Bluetooth4,6
Data connectionsAxiom XL: 3 RayNet gigabit with PoE, NMEA 2000, 2 NMEA 0183, HDMI in and out, USB touch in and out, 2 analog video inputs; the GNSS receiver needs an external antenna · Axiom 2 XL: the same without NMEA 0183, plus audio out; PoE 32 W shared5,7
DimensionsAxiom, Axiom+ and Axiom 2 (same mounting templates 87295/87296/87297), width × height, depth with straight transducer plug: 7 in 201.1 × 133 mm, 218 mm · 9 in 244.1 × 157.8 mm, 178 mm · 12 in 314 × 217 mm, 178 mm3
WeightAxiom XL 16/19/22/24: 5.9/7.6/9.9/11.3 kg · Axiom 2 XL: 5.8/7.6/9.7/11.8 kg · Axiom 2 Pro 9: 2.8–3.0 kg5,7,6
Operating temperatureAxiom XL: −25 °C to +55 °C (XL 24: −15 °C to +55 °C)5
SoftwareLightHouse 4 runs on every Axiom model (before it LightHouse 3: Axiom from v3.0.40, Axiom+ from v3.12.199; Axiom 2 from LH4 v4.11.103). Current LH4 release v4.11.133 (July 2026), as separate downloads for first-generation Axiom (1.3 GB) and Axiom 2-series displays (1.6 GB) or one 5 GB file that also updates networked products. Displays on v4.7.172 or v4.7.182 must install v4.7.184 first33,1,2,3
SoftwareLightHouse 5: v5.0.127 (October 2026), only for Axiom 2, Axiom 2 Pro and Axiom 2 XL; not available for Axiom, Axiom+, Axiom Pro or Axiom XL34

Good to know

  • Match the transducer to the model: chart-only Axiom, Axiom+ and Axiom 2 and both XL ranges have no sonar inside and need a network sonar module. RV and RVX models take the RV-100 and other RealVision transducers directly and DownVision or CPT-S through the A80490 adaptor; only the Axiom 7 DV takes CPT-100DVS or CPT-S directly. The RVM-100 is for the Axiom 2 Pro RVM only, the Axiom 2 Pro S runs CPT-S units through A80490, and the HyperVision HV-100 is on no Axiom compatibility list.1,6
  • The first-generation displays (Axiom, Axiom+, Axiom Pro, Axiom XL) stay on LightHouse 4, which now gets only maintenance and security fixes; new features go to LightHouse 5, which runs on the Axiom 2 range only (an Axiom 2 on v4.10.149 or older needs a 4.11 release first). LH4 and LH5 displays do not network with each other, so a boat with both generations keeps every display on the same LH4 version.34,33
  • Update pitfalls from the manual: an original Axiom 7/9/12 cannot hold an online download, so put a blank, formatted microSD of at least 4 GB in the slot first, never a chart card. An Axiom 2 Pro on v4.3.54 must go to v4.4.70 before anything newer and cannot go back below it afterwards. On an Axiom+ 7 the screen stays dark for about 1.5 minutes while the touchscreen recalibrates: take the sun cover off, keep the glass dry and do not touch it.26
  • Axiom, Axiom+ and Axiom 2 share housings, cut-outs, mounting templates and spares (power cable R70523, sun covers, trunnion and rear kits), so a newer unit drops into an older Axiom’s hole. Axiom+ brought IPS screens with more pixels on the 7 and 9 in (1024 × 600 and 1280 × 720 instead of 800 × 480), 16 GB instead of 4 GB and HydroTough glass, but no DV version; Axiom 2 adds a six-core processor, 64 GB and gigabit RayNet.2,3
  • The 7/9/12 in models run on 12 V only (8–16 V, 7 A fuse), so a 24 V boat needs a converter; Pro and XL models take 12 or 24 V on a 15 A fuse. If you extend the power cable, size it so that at least 10.8 V reaches the display with the battery at 11 V. Never unplug a transducer with the display switched on, and never cut a transducer cable: a damaged one is replaced, not spliced.1
  • For refits: adaptor plates (A80524 to A80529 and A80564 for the 7/9/12, A80530, A80531 and A80533 for the Pro) re-use the cut-outs of e7, C/E Classic, a-, c- and eSeries plotters. SeaTalk 1 gear joins through the E22158 kit, NMEA 0183 through A80721 and SeaTalkhs cables through A80160. Only an original Axiom, an Axiom XL or an Axiom Pro made before September 2022, downgraded to LightHouse v3.11.42, can share a network with eS or gS displays; Axiom+ and the Axiom 2 range cannot.26,8

Videos & how-tos

Links to YouTube, nothing embedded. The maker’s own channel comes first; the rest are channels we found clear and correct for this model.

Fitted in

Boats whose builder lists it as standard or optional equipment:

  • Bali 4.1 — Raymarine Axiom 7″ (Raymarine Electronic Pack 1 in the dealer list of a 2020 boat; the spec sheets A-2019 and B-2019 list a Raymarine colour chartplotter at the helm, depending on the pack, without naming it)
  • Bali 4.2 — Raymarine Axiom 7″ (Raymarine electronics Pack 1 on every sheet from A-2021 to A-2025, depending on the pack chosen)
  • Bali Catspace — Raymarine Axiom 7″ (Raymarine electronics Pack 1 on every sheet from A-2021 to A-2025, depending on the pack chosen)
  • Leopard 42 — Raymarine Axiom 9 / Axiom 12 (2nd generation: Raymarine pack of the charter boats: Axiom 9 (Moorings list, July 2020), Axiom 12 at the helm (Sunsail 424 list, 2025))
  • Nautitech 40 Open — Raymarine Axiom 9 × 3 (Raymarine navigation pack of the US dealer’s 2026 boats: one Axiom 9 at each helm and one at the chart table)
  • Dragonfly 40 — Raymarine Axiom+ 7 · Axiom+ 9 · Axiom 9 Pro · Axiom 12 Pro (Options (2025 price lists), delivered without charts; each wheel pedestal takes a plotter of up to 12 inches)
  • Beneteau Oceanis 40.1 — Raymarine Axiom+ 7″ · Axiom+ 9″ (Raymarine packs (lists from June 2022): Axiom+ 7″ at the starboard helm, a second one at the port helm in the Offshore pack; a 9″ Axiom+ in place of the starboard 7″ as an option)
  • Beneteau Oceanis 46.1 — Raymarine Axiom+ 7″ · Axiom 2 Pro 9″ (July 2024 lists, option packs: Axiom+ 7″ at the starboard console (Coastal), a second one to port (Offshore); a 9″ Axiom 2 Pro on each XXL console (Offshore Large Consoles))
